Description
Welding of metals is associated with a large number of dangerous and harmful factors, bright light of the electric arc, ultraviolet and infrared rays, hot metal and slag, toxic aerosols and gases.

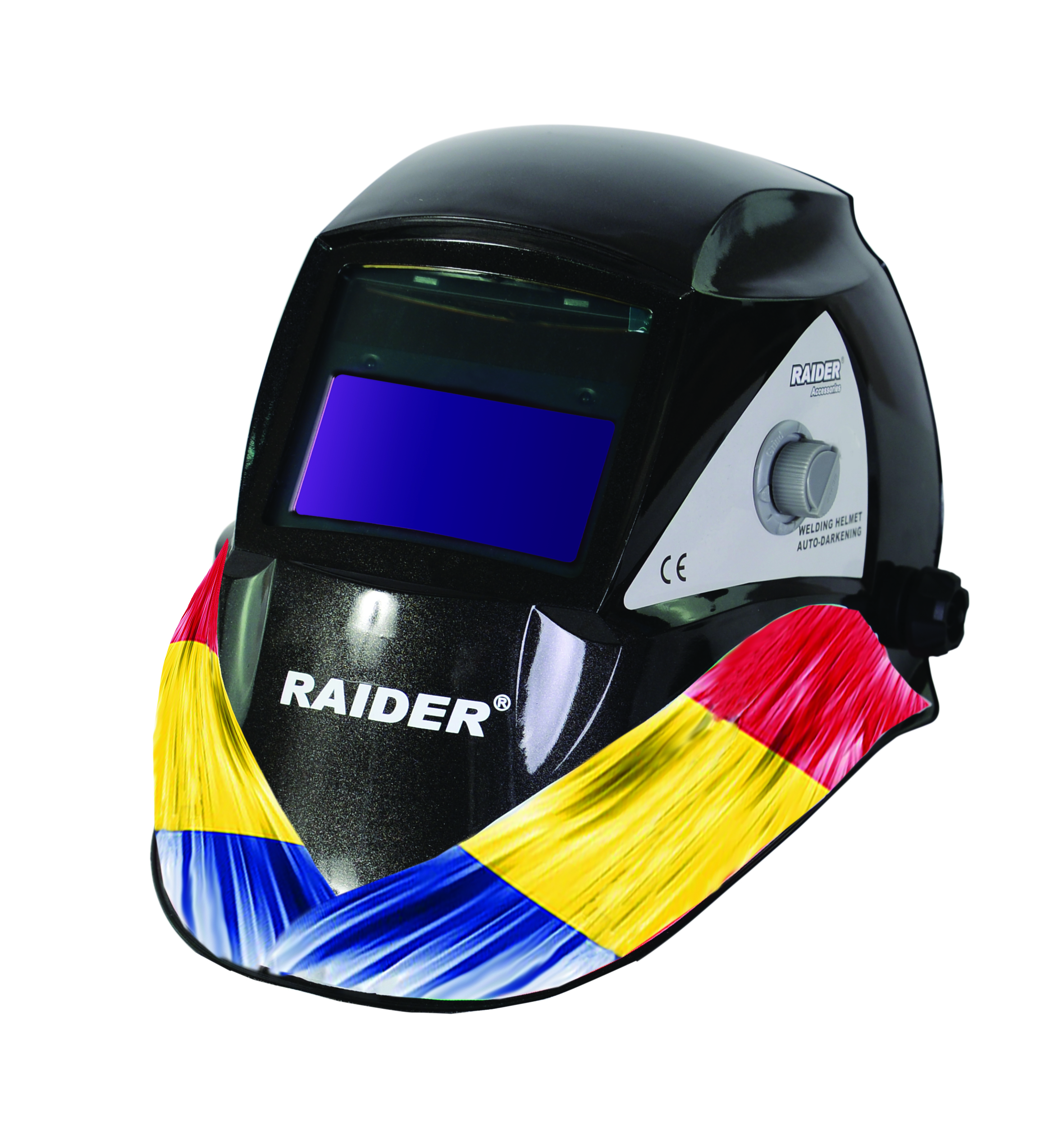

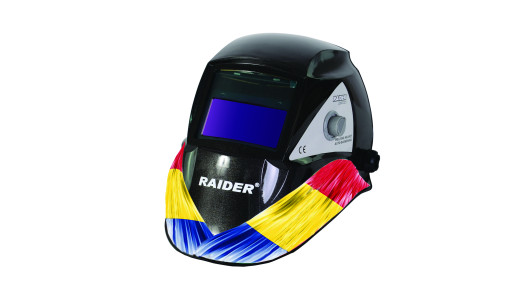

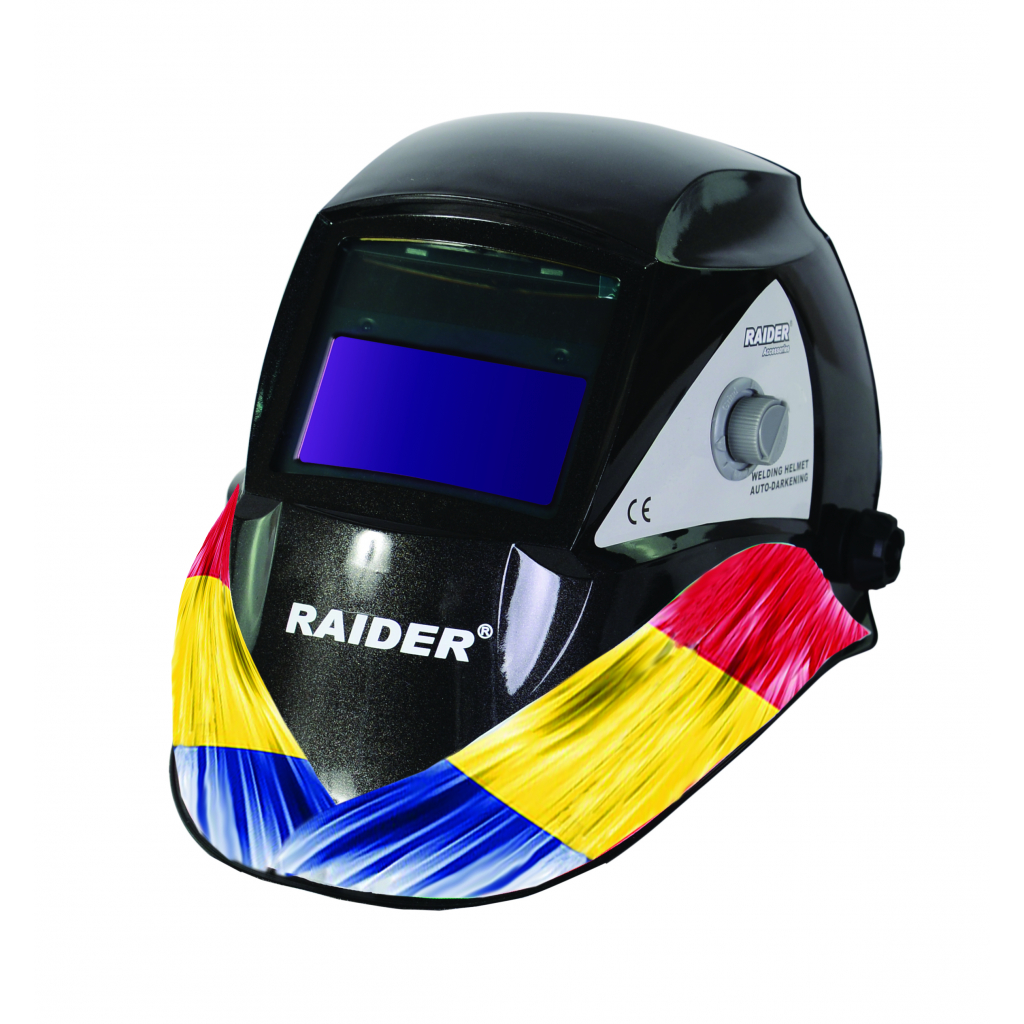

One of the most important means of protecting the welder from these factors is the RAIDER welding mask The model photosolar helmet RD-WH04 has:

  • Dimming adjustment

  • Ability to turn on / off the filter depending on the brightness of the arc and the light emission of the hot metal

  • Features
    Main characteristics
    Uv/ir protection (DIN) 16 DIN
    Light to dark adaptation time (sec) 0.2|1.0 sec
    Material PP
    Operating temperature (°C) -10|55 °C
    Packing (pcs.) 1 pcs
    Sensor 2
    Dark shade state (DIN) 9-13 DIN
    Storage temperature (°C) -20|70 °C
    Rated voltage type Solar Cells + Li-Ion Battery
    In accordance with CE EN175 EN379
    Turing on & off Automatically
    Switching time (sec) 1/25000 sec
    Tig range (amps/DC; amps/AC) ≥ 35; ≥ 15 amps/DC; amps/AC
    Optical class 1/1/1/2
    Light shade state (DIN) 4 DIN
    View size (mm) 92x42 mm - 110x90 mm
    Filter dimensions (mm) 110x90x9 mm
    Sensitivity control Outer Side Smooth Adjustment From Low To High
