  • Powerful 1700 W electric motor providing an RPM of up to 4000 min-1
  • Possibility to adjust the cutting depth from 5 to 40 mm
  • Possibility to connect a dust collector for extra clean operation
  • Laser feature available to help precision cutting during operation
Article number: 020901
Barcode: 3800972022614
Brand: Raider Pro

pictogram
pictogram
pictogram
pictogram
pictogram
pictogram
Description
The Raider Pro series machines have high performance, improved functionality and a 3 year warranty. The range of power tools offered can meet the needs of any user, depending on the requirements and scale of work.

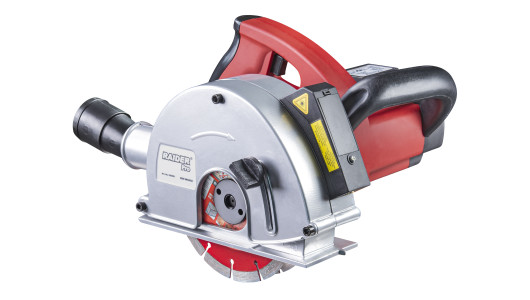

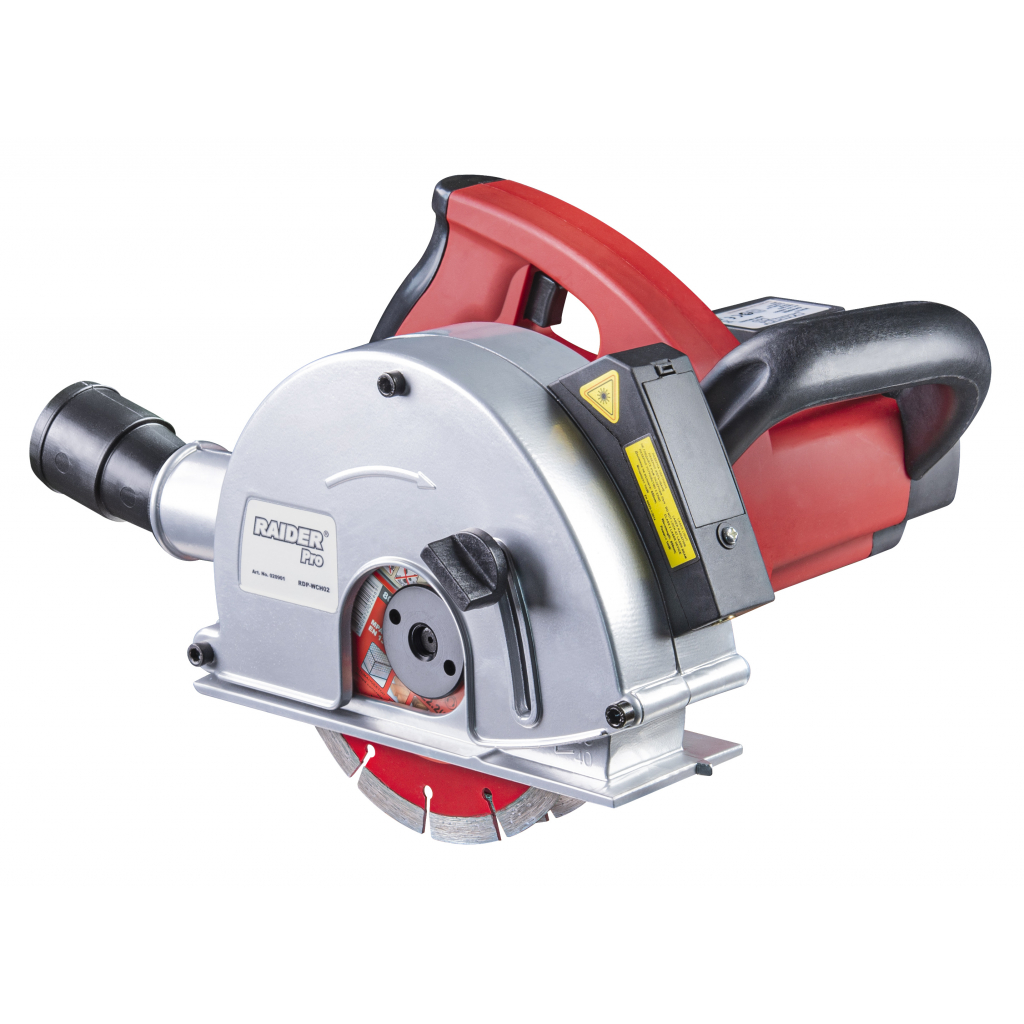

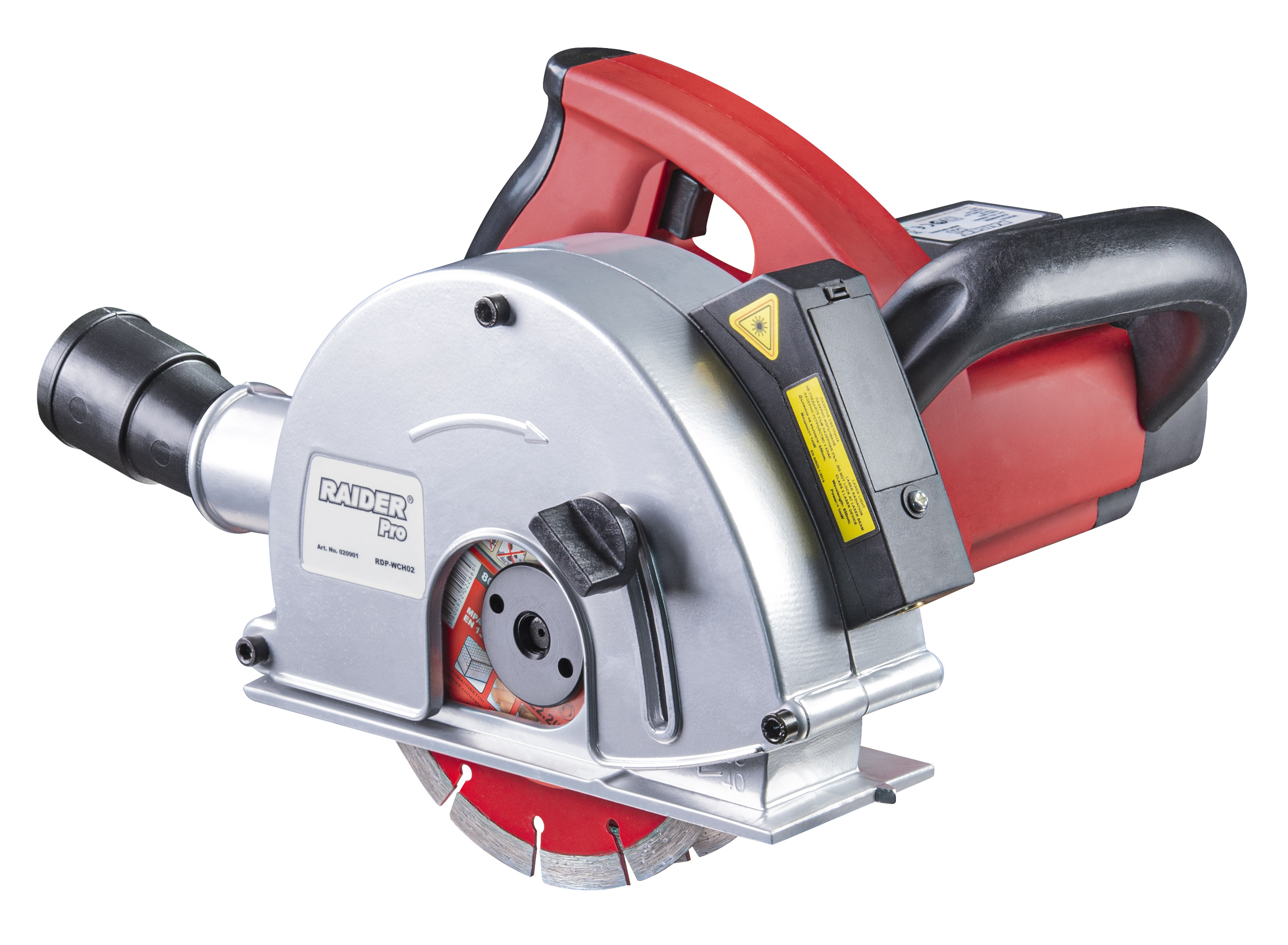

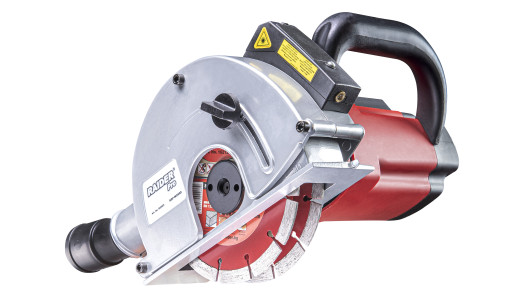

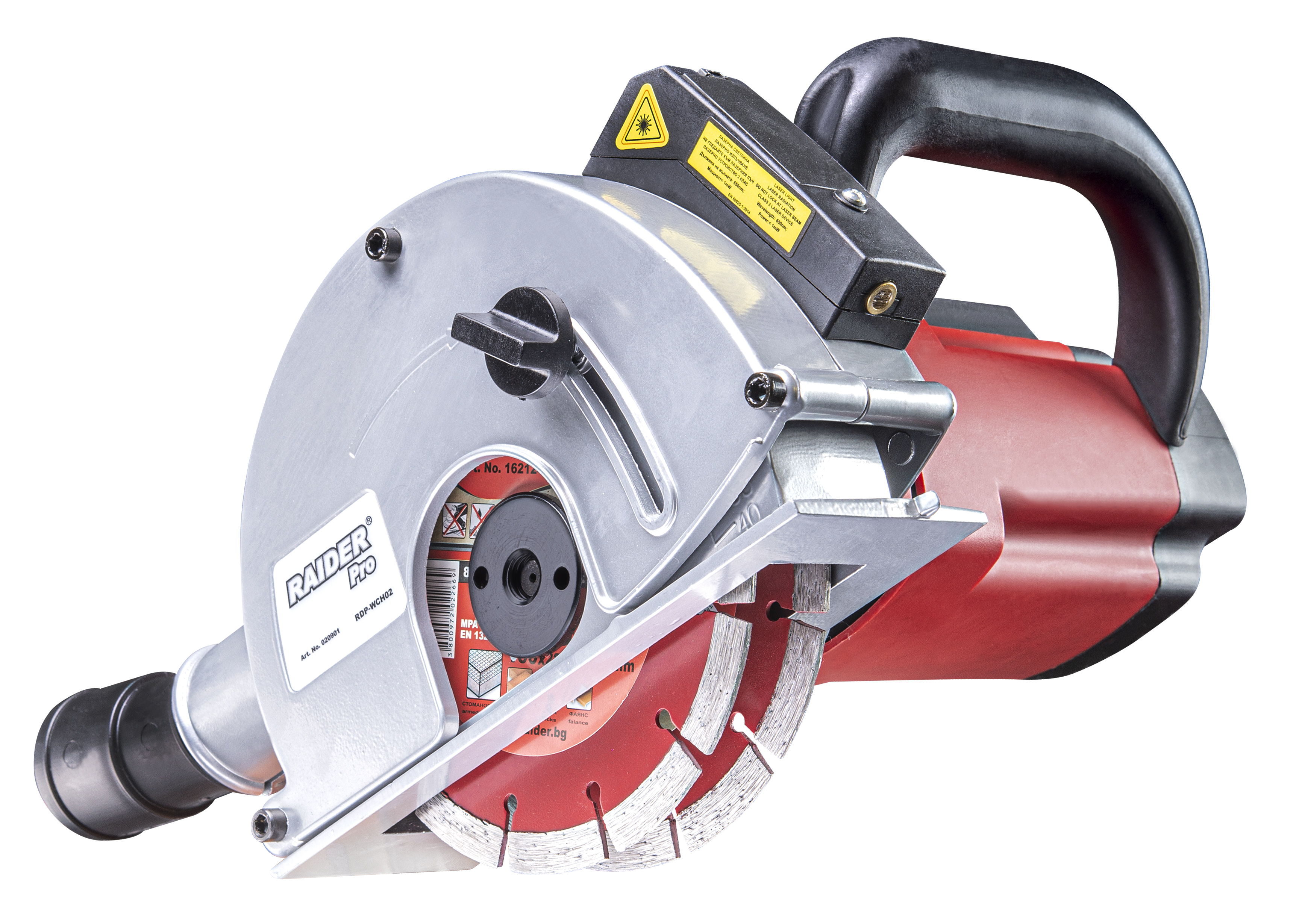

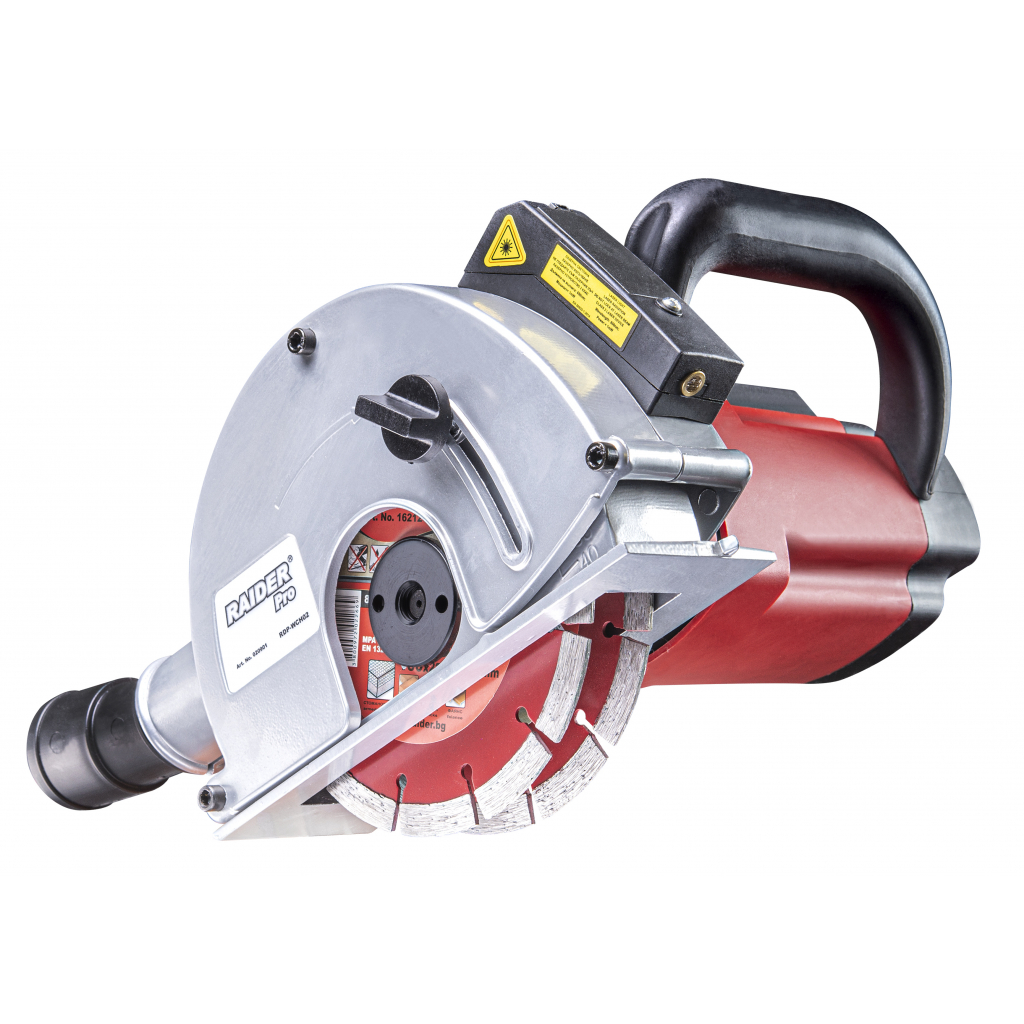

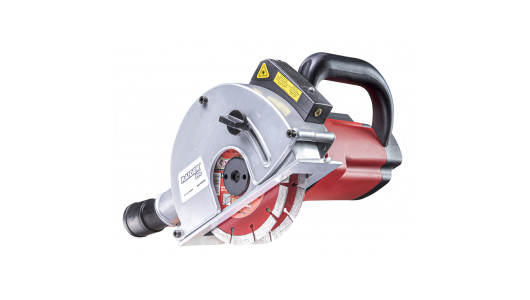

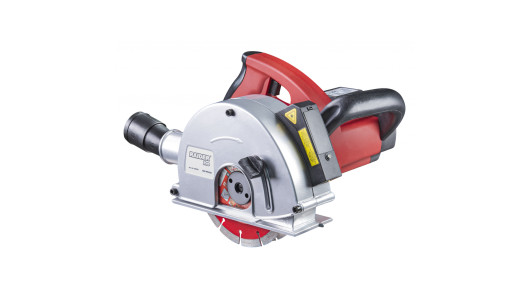

The Wall Chaser Raider RDP-WCH02 is designed for cutting channels in concrete, aerated concrete, brick walls, stone, etc. , for the purpose of laying electrical, plumbing and gas installations, cable networks, etc. The machine is for dry cutting only

The model has:

  • Powerful 1700 W electric motor for easy milling

  • Ability to adjust the distance between the two discs thus achieving a cutting width of 14 mm, 19 mm, 29 mm

  • Adjustable cutting depth of up to 40 mm

  • Laser available to help cut a straight line without further delineating the cutting surface

  • Easy and convenient replacement of cutting discs

  • The model is equipped with an overload protection feature

  • Sturdy metal protective cover covering the cutting area

  • Nozzle for easy connection to dust collectors

  • Robust and easy machine guidance with the main and optional rubber grips

  • Sound power level of 96.3 dB (A) / K=3 /

  • Sound pressure level of 85.3dB (A) / K=3 /

  • Vibration level of 7.214 / K=1.5 m/s2 /

  • Features
    Main characteristics
    Диаметър на вътрешния отвор (mm) 22.2 mm
    Internal bore diameter (mm) 22.2 mm
    Диаметър на диска (mm) 150 mm
    Disc diameter (mm) 150 mm
    Макс. обороти без натоварване диапазон (min-1) 0 min-1 - 4000 min-1
    Maximum no- load speed (min-1) 0 min-1 - 4000 min-1
    Номинална мощност (W) 1700 W
    Rated input power (W) 1700 W
    Номинално захранващо напрежение (V) 230 V
    Rated voltage (V) 230 V
    Плавен старт Не
    Soft start No
    Регулируеми обороти Не
    Adjustable load speed No
    Тип захранване Мрежово
    Rated voltage type Corded - Electrical Grid
    Клас на защита II
    Protection class II
    Additional characteristics
    Блокировка на вала Да
    Shaft locking Yes
    Спомагателна ръкохватка Да
    Auxiliary handle Yes
    Тип електромотор Четков
    Electric motor type Brush
    Филтър Не
    Filter No
    Застопоряваща гайка С ключ
    Quick- locking nut With A Key
    Защитен предпазител на диска Монтаж с инструмент
    Disc fuse protector Installation With Tools
    Резба на шпиндела M12
    Spindle thread M12

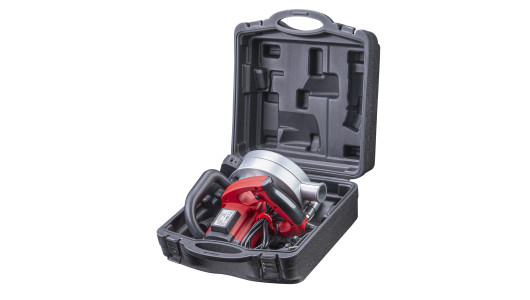

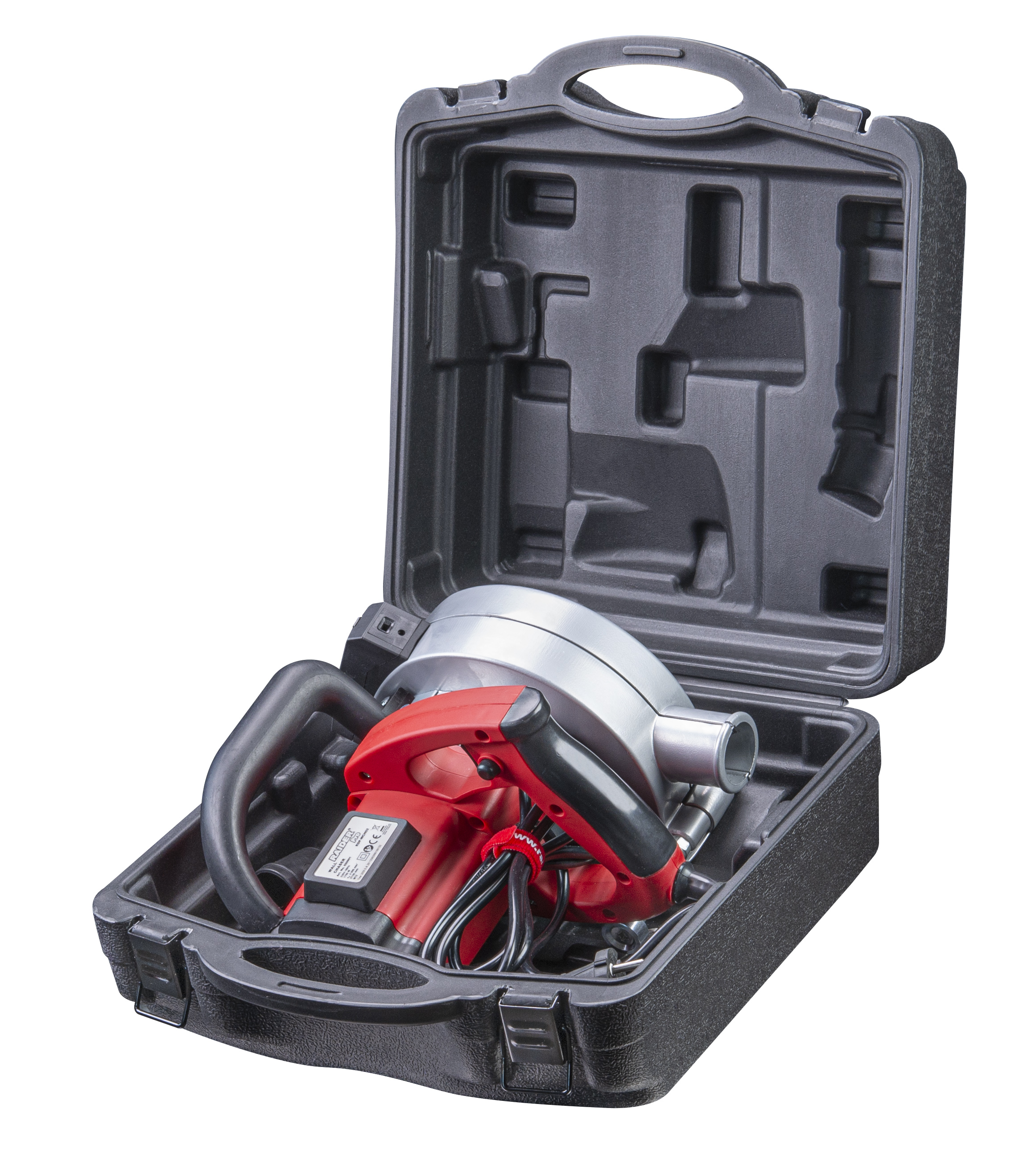

    Equipment
    Disc 2 pc.
    Key with two pins 1 pc.
    Spare brush set 1 pc.
    Hex key 1 pc.
    Adapter 1 pc.
