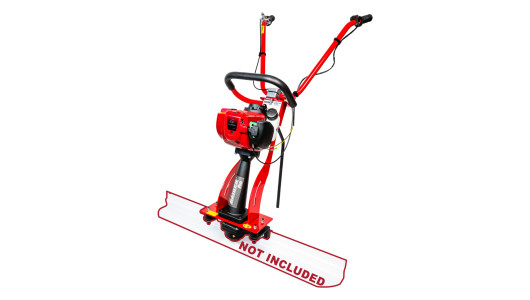

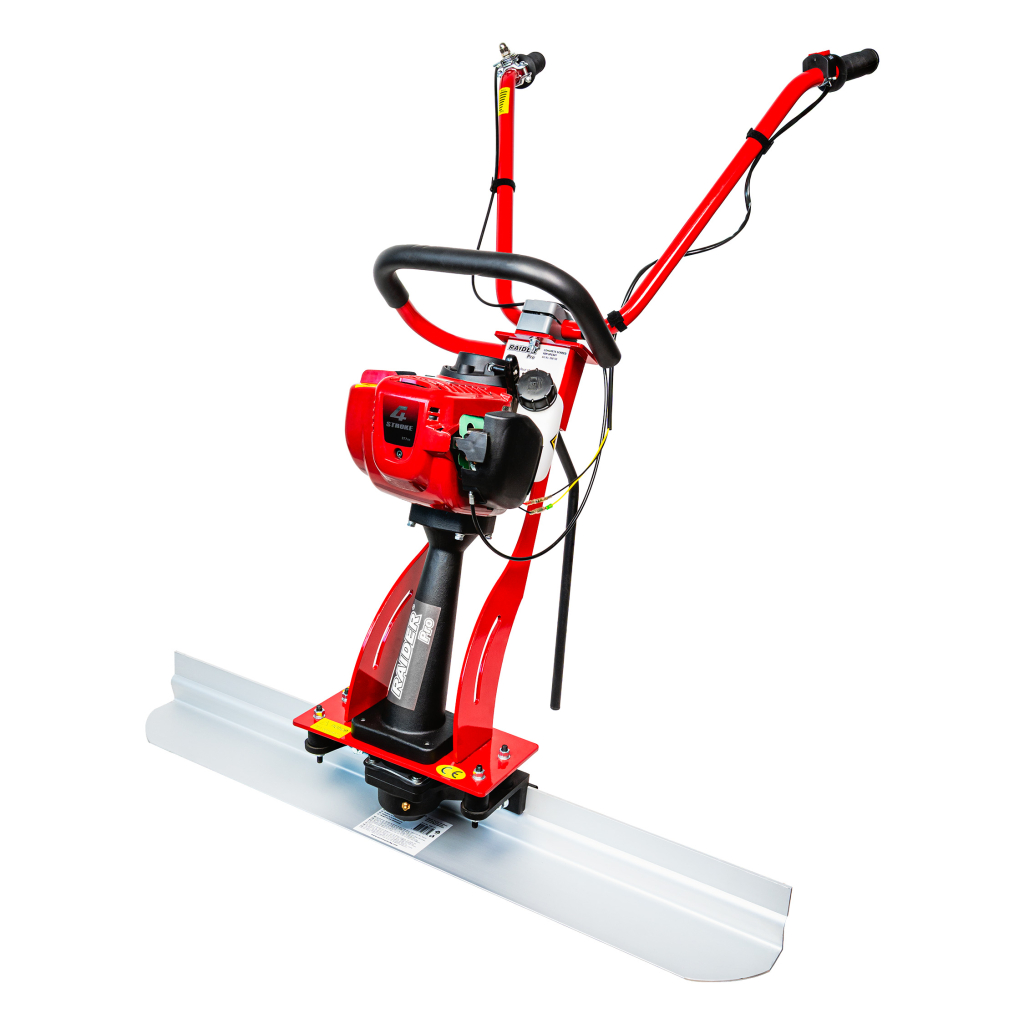

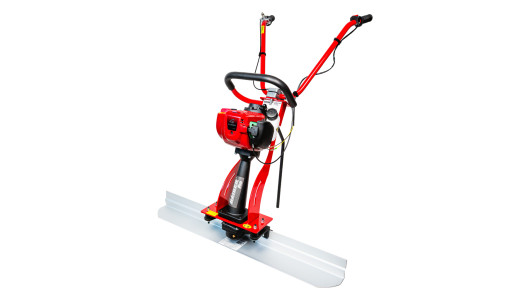

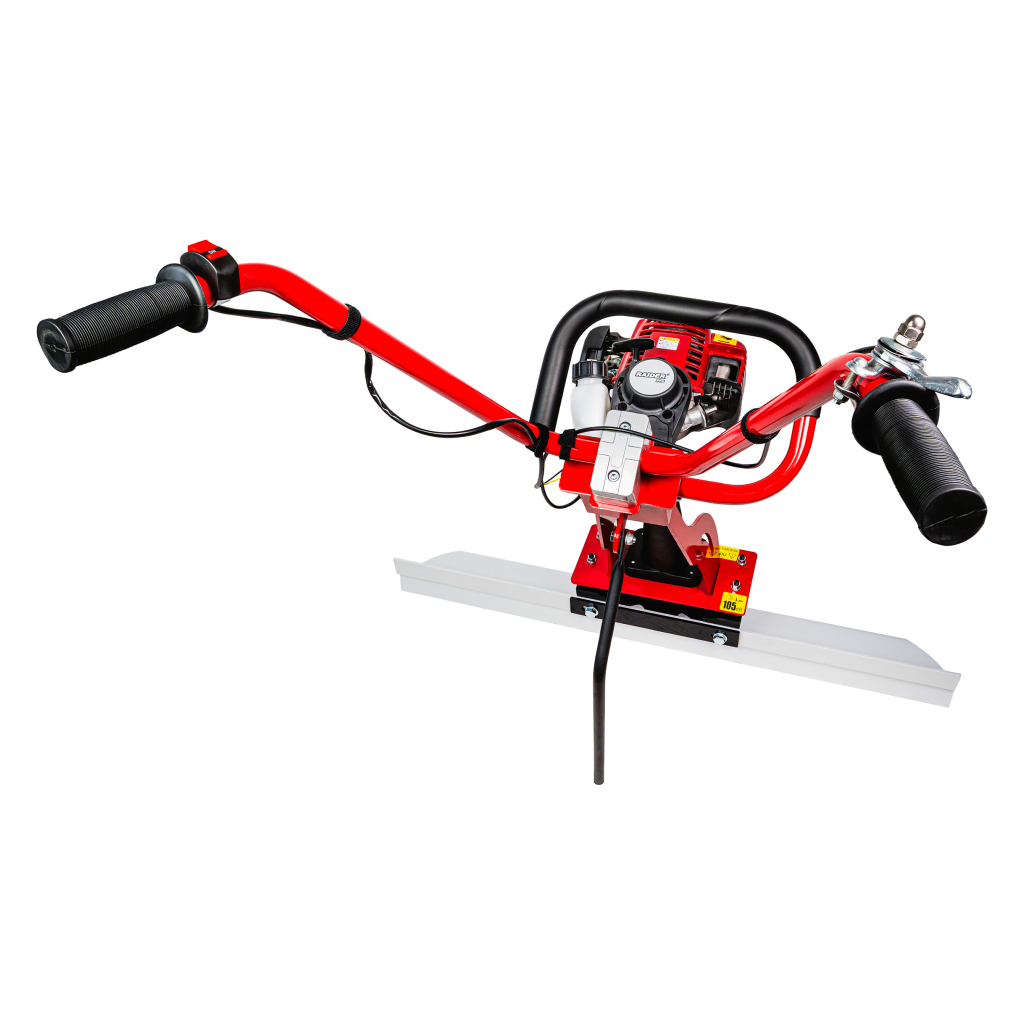

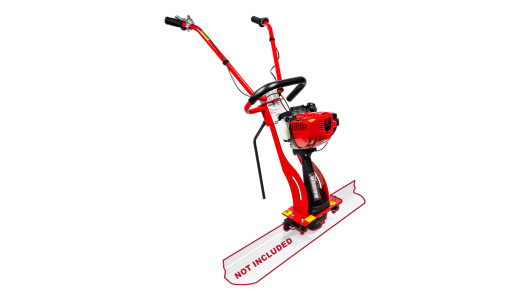

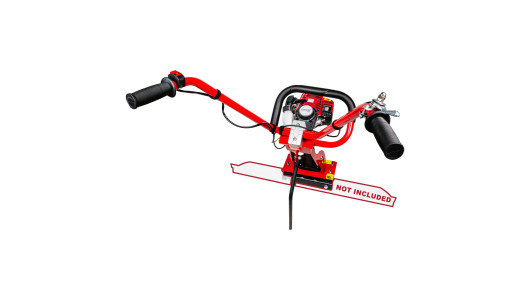

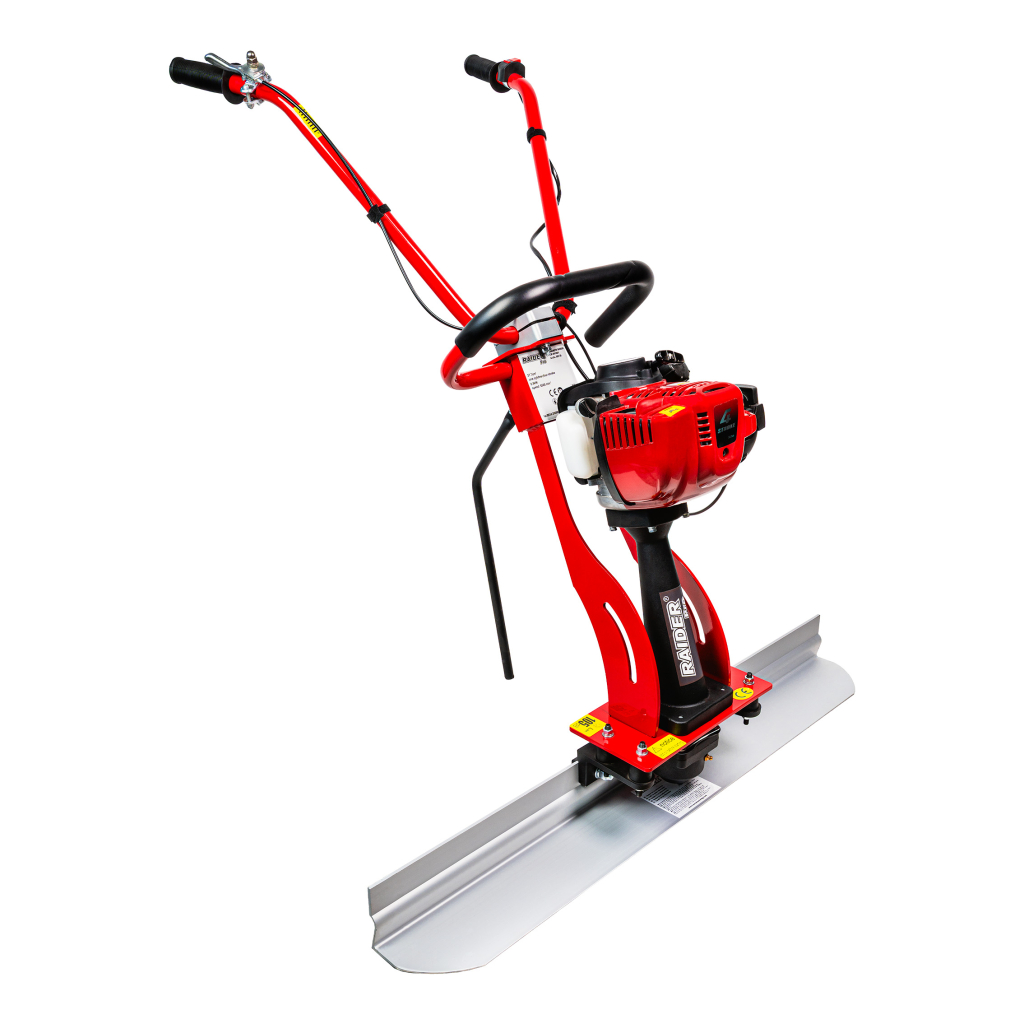

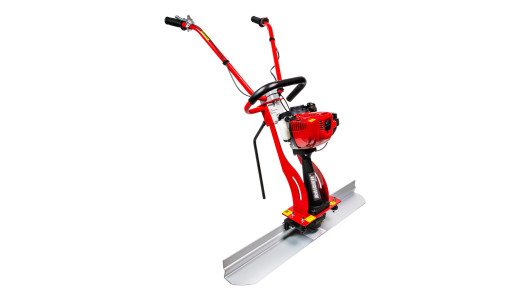

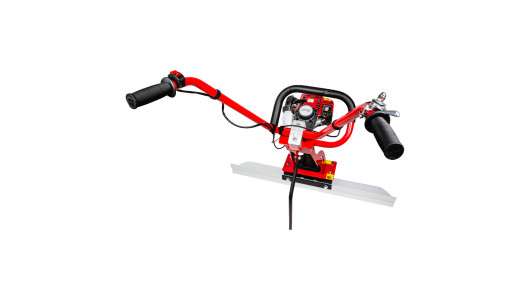

Concrete Screed 1,2hp RDP-SFCS01

  • Professional petrol-powered vibrating screed for leveling and compacting concrete
  • Four-stroke petrol engine with 1.2 hp (0.8 kW) for stable and consistent operation
  • Fully autonomous operation – no need for electrical power supply or generator
  • Suitable for small and medium-sized construction sites, outdoor areas, and new construction projects
  • Compatible with 1 m and 2 m screed profiles (sold separately)
Article number: 090130
Barcode: 3800972036802
Brand: Raider Pro
Download:
Presenter
User manual
Description
  • The RDP-SFCS01 vibrating screed by RAIDER is a professional solution for leveling and compacting concrete surfaces on small and medium-sized construction sites. The machine is designed to achieve an even and high-quality finish on freshly poured concrete by ensuring effective compaction and eliminating air voids in the surface layer.

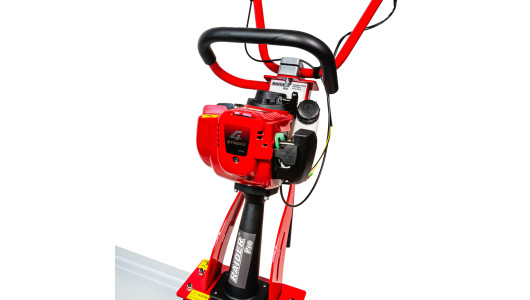

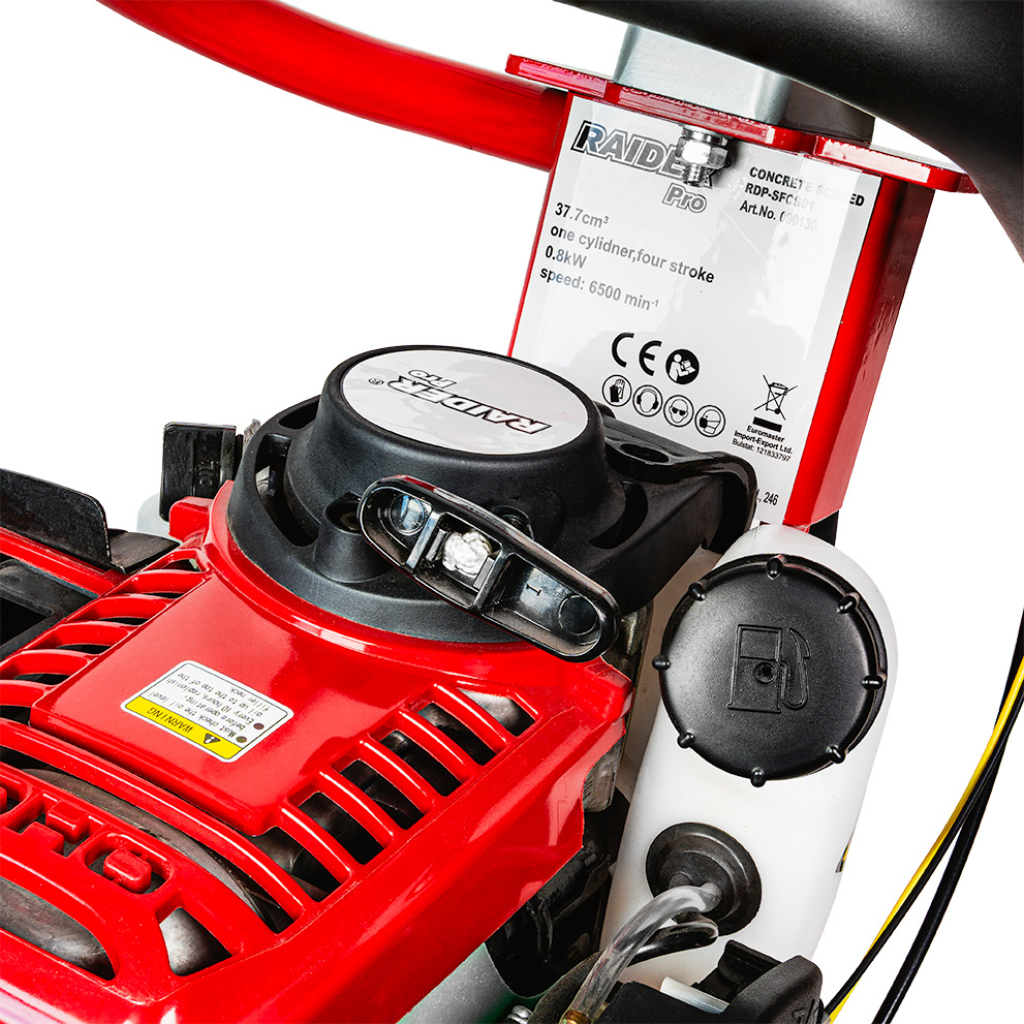

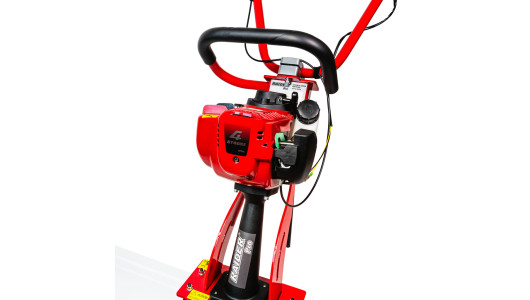

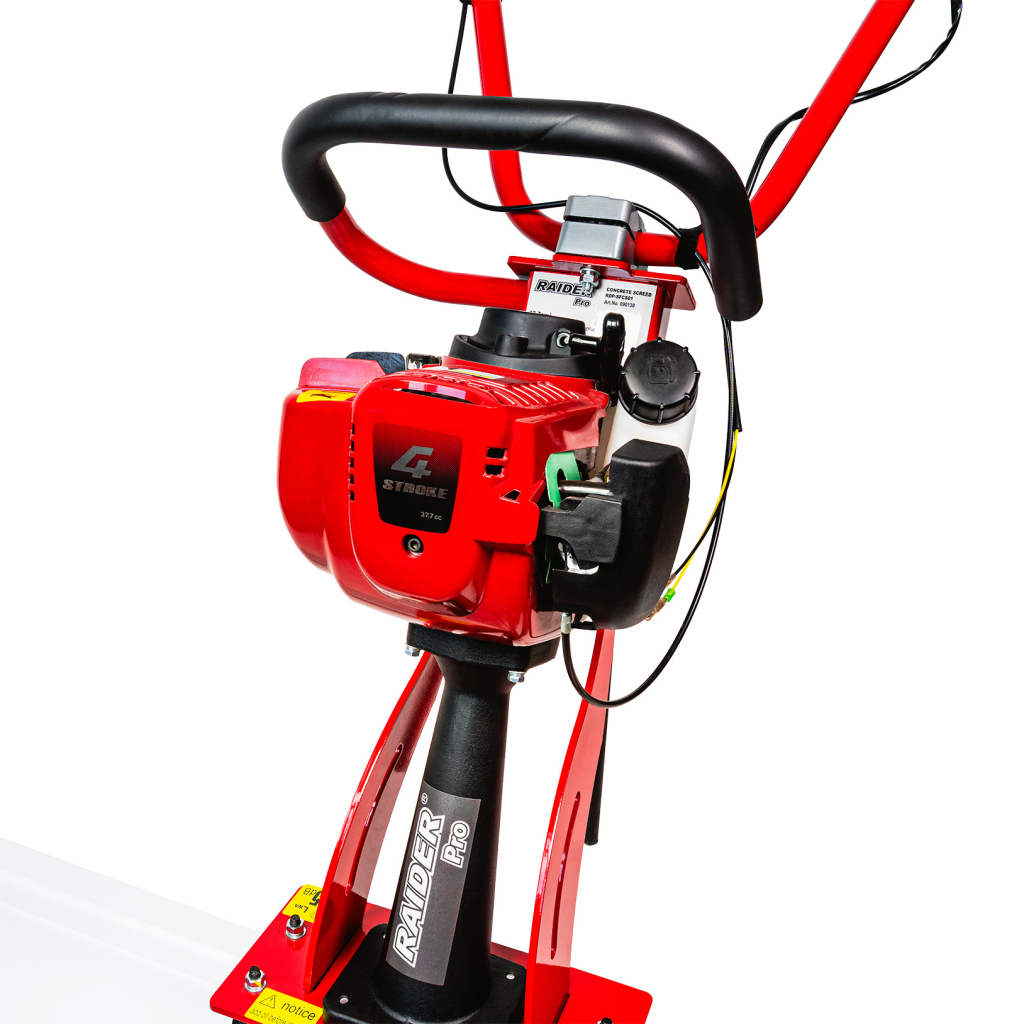

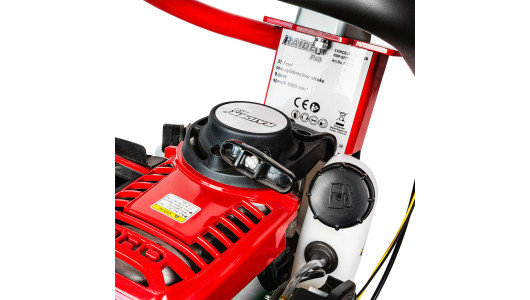

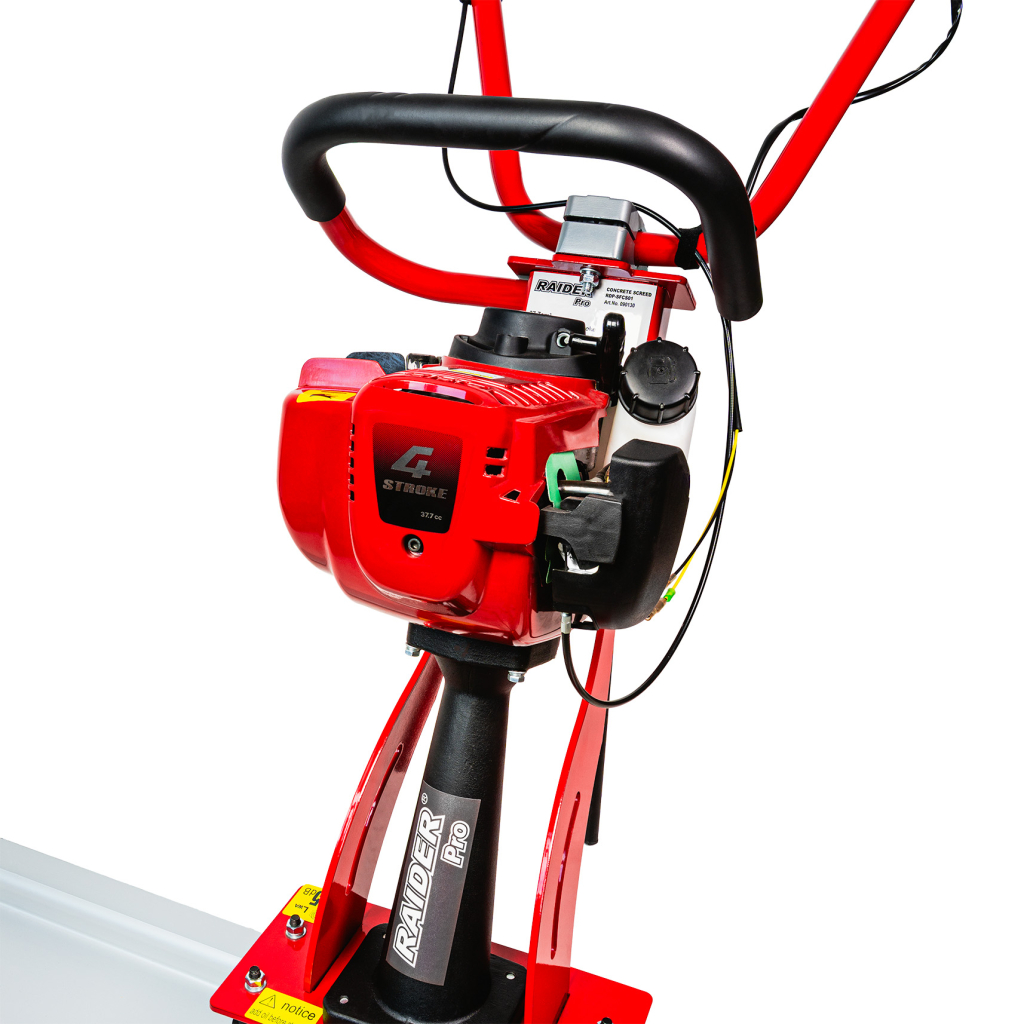

  • The model is equipped with a single-cylinder, gasoline-powered, four-stroke engine with air cooling and a displacement of 37.7 cm³. The engine delivers 0.8 kW (1.2 hp) of power and reaches maximum speeds of up to 6500 min⁻¹, ensuring stable operation and uniform vibration along the entire length of the screed. This allows for a smooth and well-compacted concrete surface even during extended operation.


  • One of the main advantages of the RDP-SFCS01 vibrating screed is its complete autonomy. Thanks to the gasoline drive, the machine does not require an external power supply or generator, making it particularly suitable for new construction projects, outdoor sites, and areas without electrical infrastructure. This provides greater mobility and flexibility during on-site work.


  • The machine features a robust construction, easy maintenance, and an optimal balance between price and performance, making it a practical choice for construction companies, mobile crews, and professional contractors. The vibration level reaches 16.25 m/s², while the sound power level is 105 dB(A), which is typical for this class of professional equipment and ensures efficient operation when standard safety measures are observed.

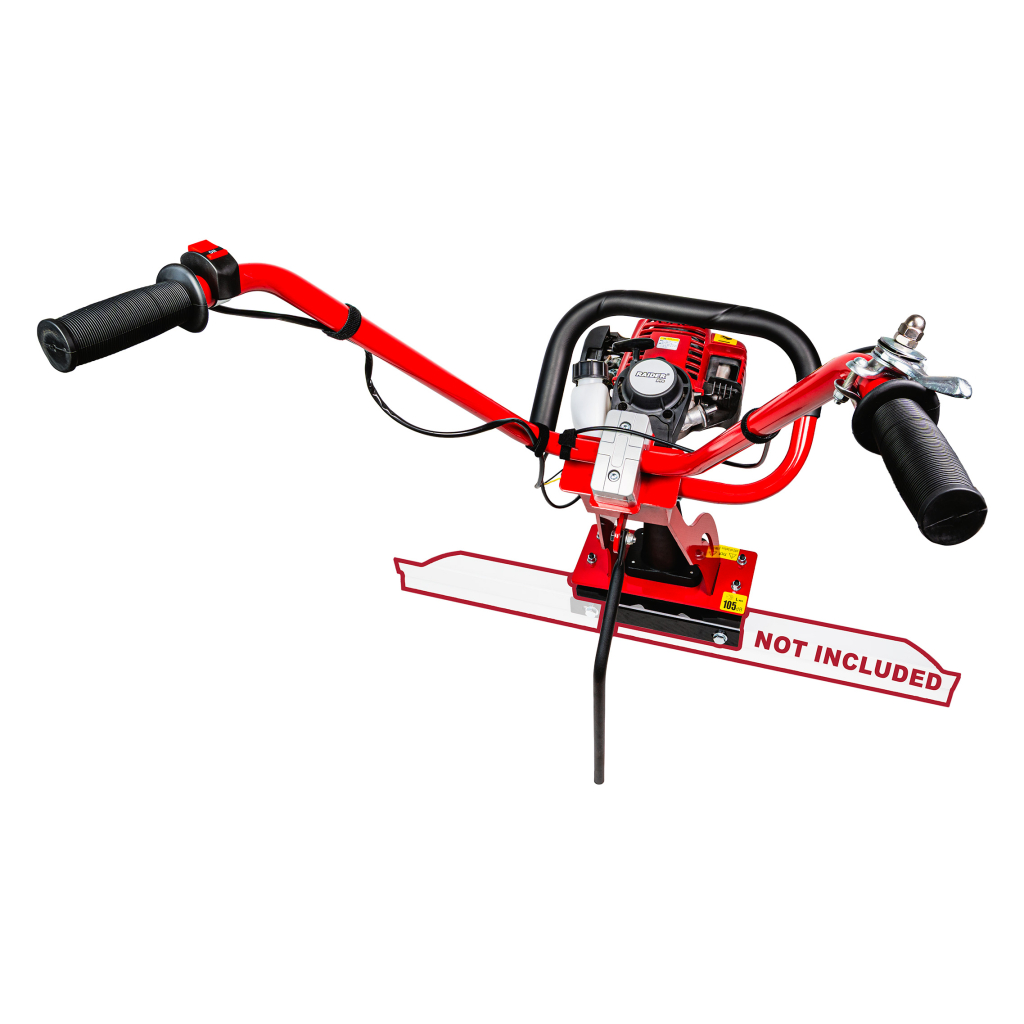

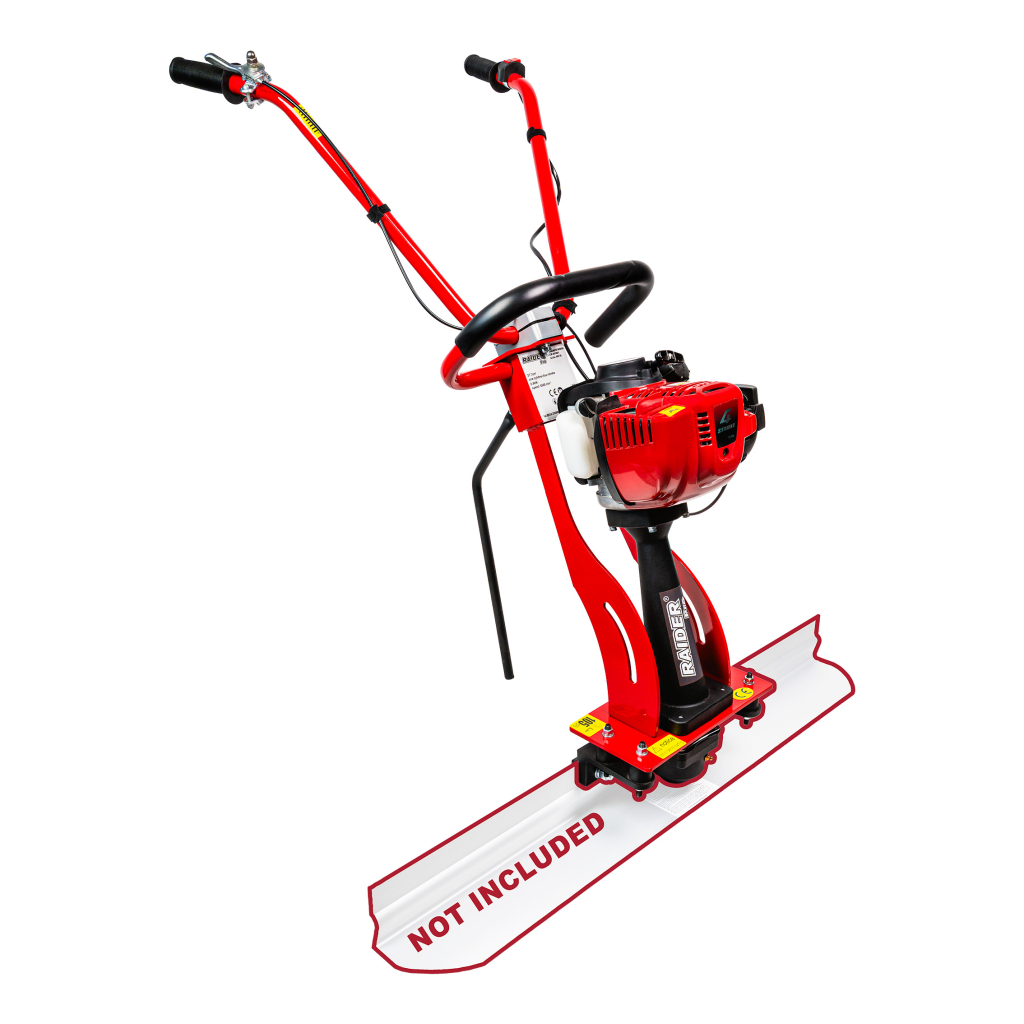

  • The vibrating screed operates with interchangeable aluminum profiles (sold separately), allowing adaptation to the specific task and working area. Profiles with a length of 1 m are available for better control and work in confined spaces, as well as 2 m profiles for higher productivity when processing larger concrete surfaces.

    • Features
    Main characteristics
    Макс. обороти без натоварване диапазон (min-1) 0 min-1 - 6500 min-1
    Maximum no- load speed (min-1) 0 min-1 - 6500 min-1
    Обем на двигателя (cm³) 37.7 cm³
    Engine displacement (cm³) 37.7 cm³
    Additional characteristics
    Макс. мощност на двигателя (kW) 0.8 kW
    Maximum engine power (kW) 0.8 kW
    Ниво на вибрации Ah неопределеност К = 1.5 (m/s²) 16.25 m/s²
    Vibrational level ah uncertainty k = 1.5 (m/s²) 16.25 m/s²
    Ниво на звукова мощност (dB) 105 dB
    Sound power level (dB) 105 dB
    Тип гориво Бензиново
    Fuel type Gasoline
