  • RDP-BMBRH20 is a powerful brushless cordless rotary hammer with SDS-Max chuck
  • With 7J impact energy, it is designed for heavy-duty drilling and chiseling tasks
  • As part of the R20 System, it provides cordless freedom, high efficiency, and professional-grade reliability
  • Ergonomic design – combines comfort with precise control over the tool, featuring an advanced anti-vibration system that effectively reduces fatigue and minimizes vibrations, even during extended use.
  • An ideal choice for builders and installers seeking mobile power without compromise
  • The machine comes without battery and charger
Article number: 030200
Barcode: 3800972038219
Brand: Raider Pro

Description

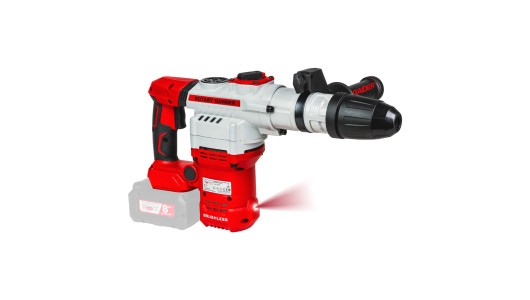

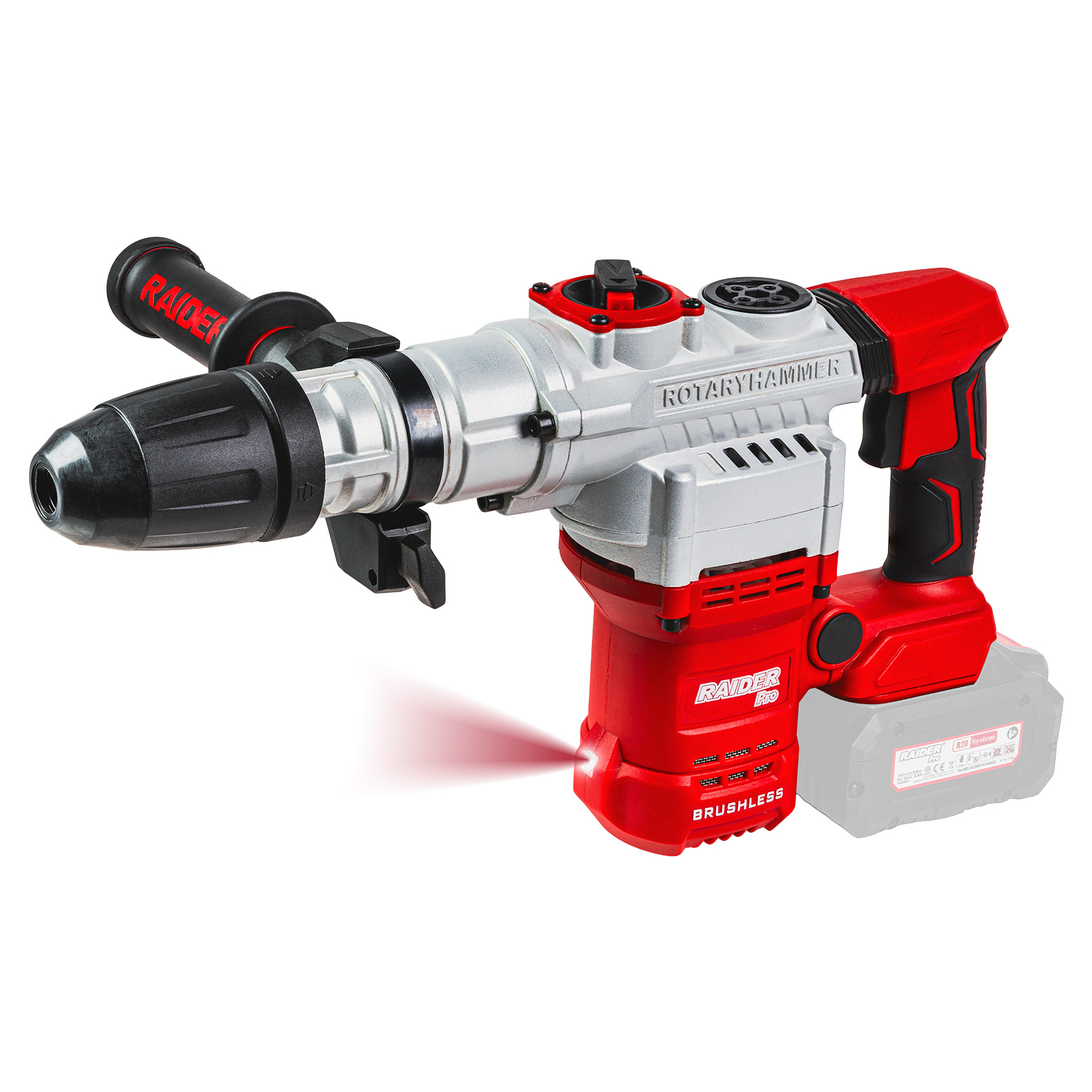

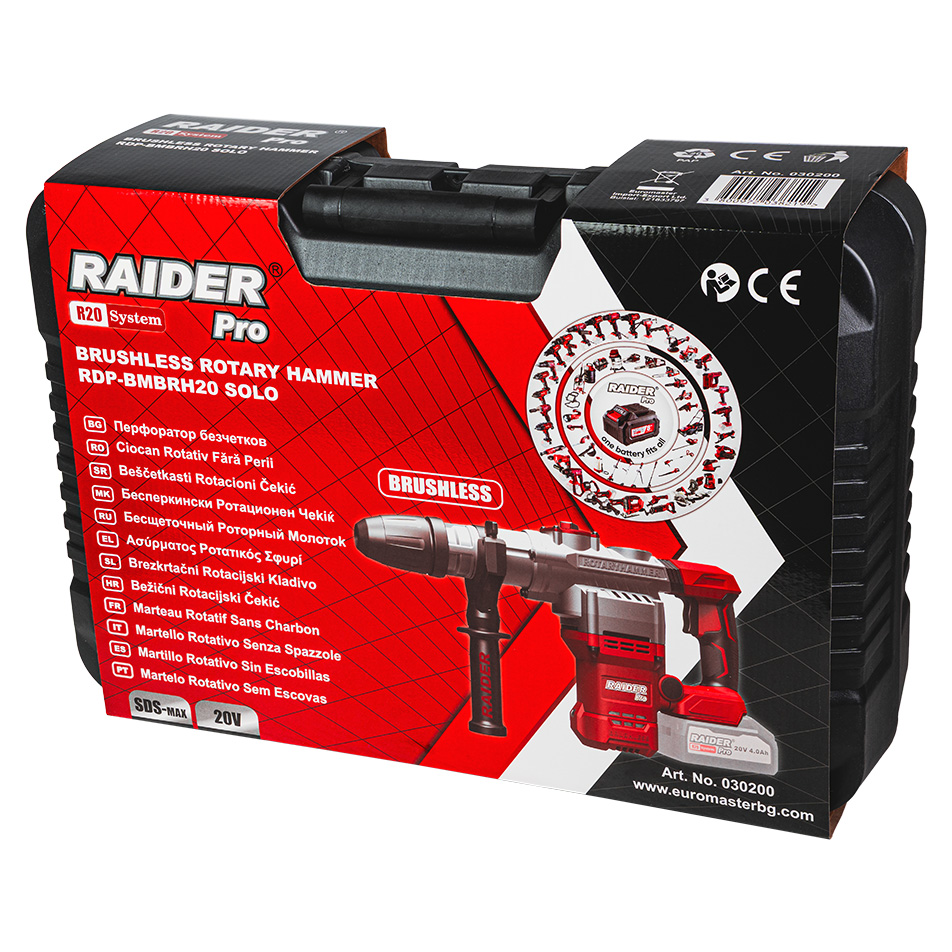

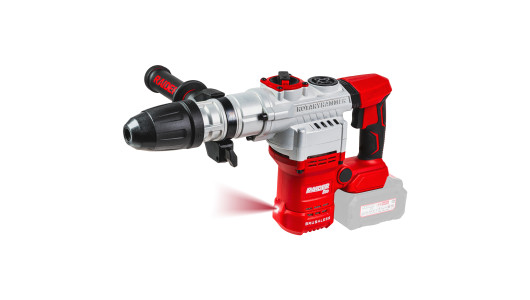

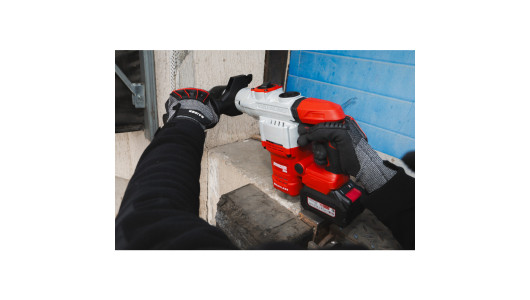

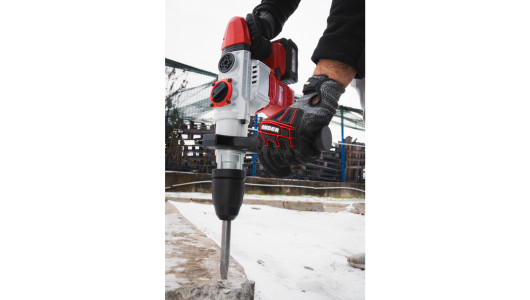

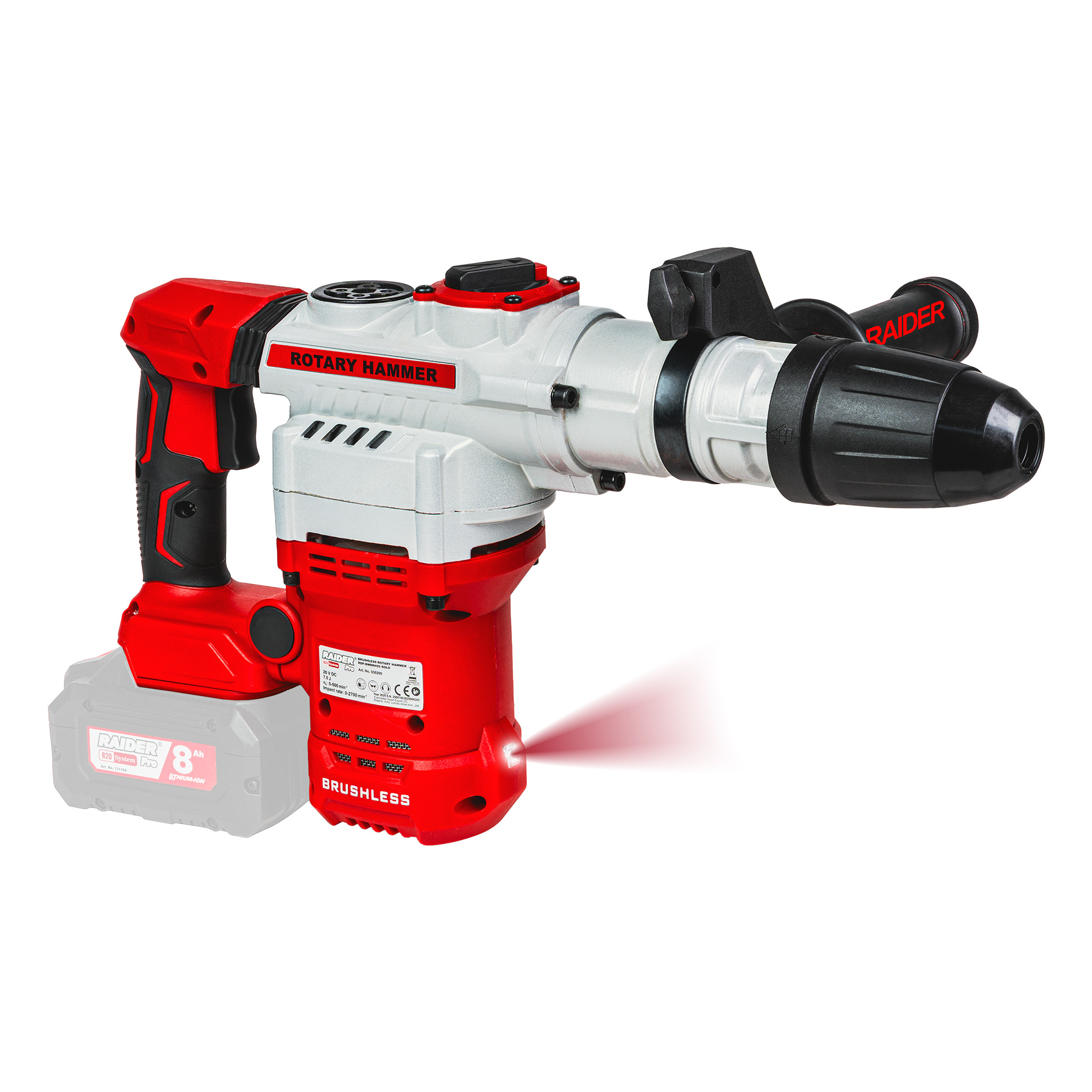

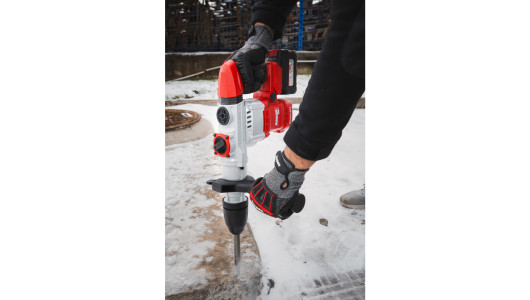

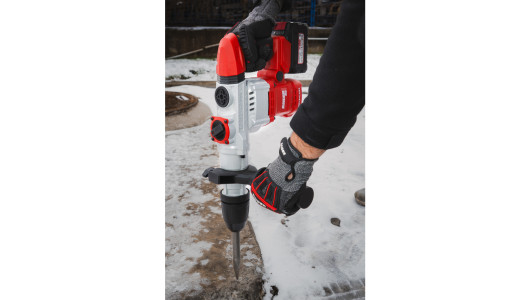

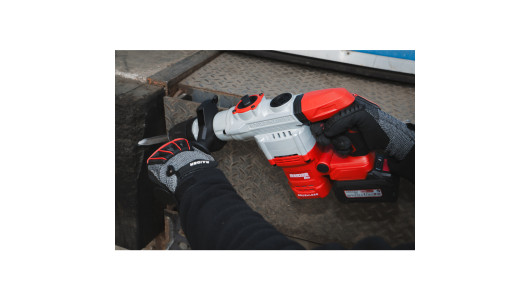

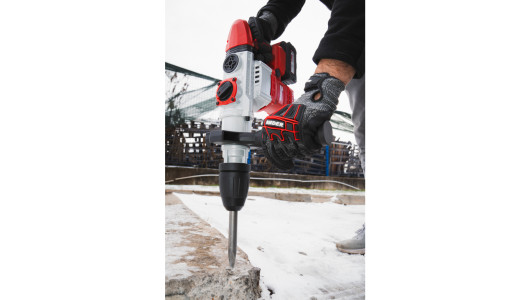

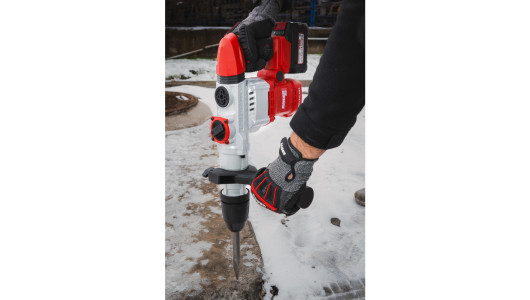

R20 Brushless Rotary Hammer SDS-Max 7J Solo Case RDP-BMBRH20

The RDP-BMBRH20 brushless cordless rotary hammer from Raider’s R20 Series is a powerful and reliable tool designed for heavy-duty and intensive drilling and chiseling tasks. Compatible with the R20 System battery platform, this tool delivers high performance, mobility, and exceptional durability without relying on a power outlet. It is intended for professional use in construction, installation, and renovation projects.

Key Features:

  • Part of the Raider R20 System – One battery fits all!

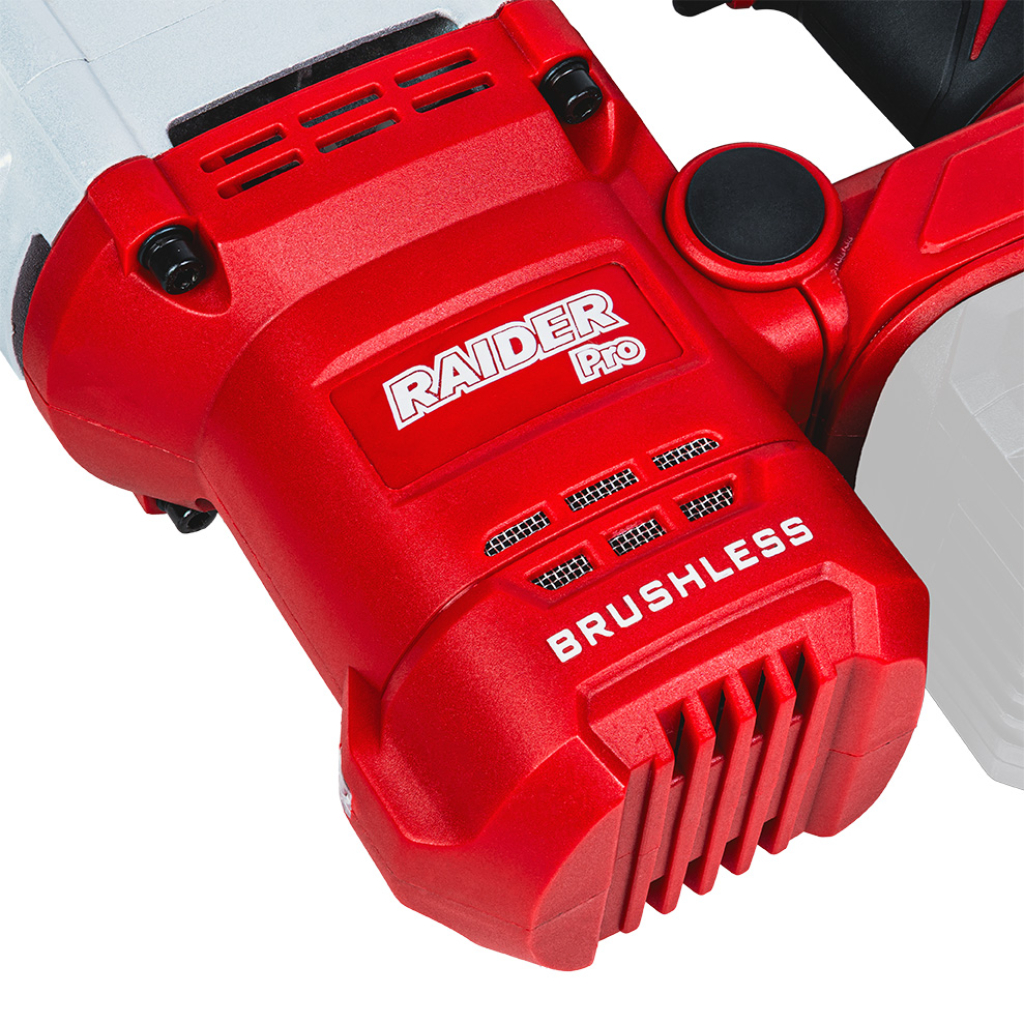

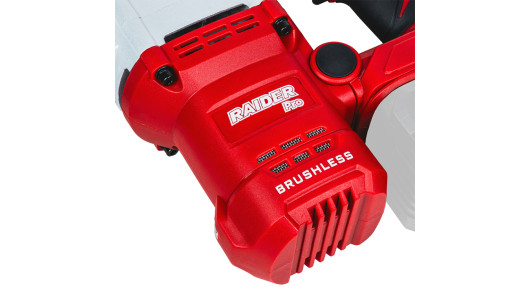

  • Brushless motor – ensures longer lifespan, reduced maintenance, and higher energy efficiency

  • SDS-Max – for heavy-duty applications, secure tool connection, and easy accessory changes

  • Impact energy: 7 J – suitable for drilling into concrete, brick, stone, and for breaking hard surfaces


  • Functions:

  • Chiseling mode (impact without rotation)

  • Hammer drilling

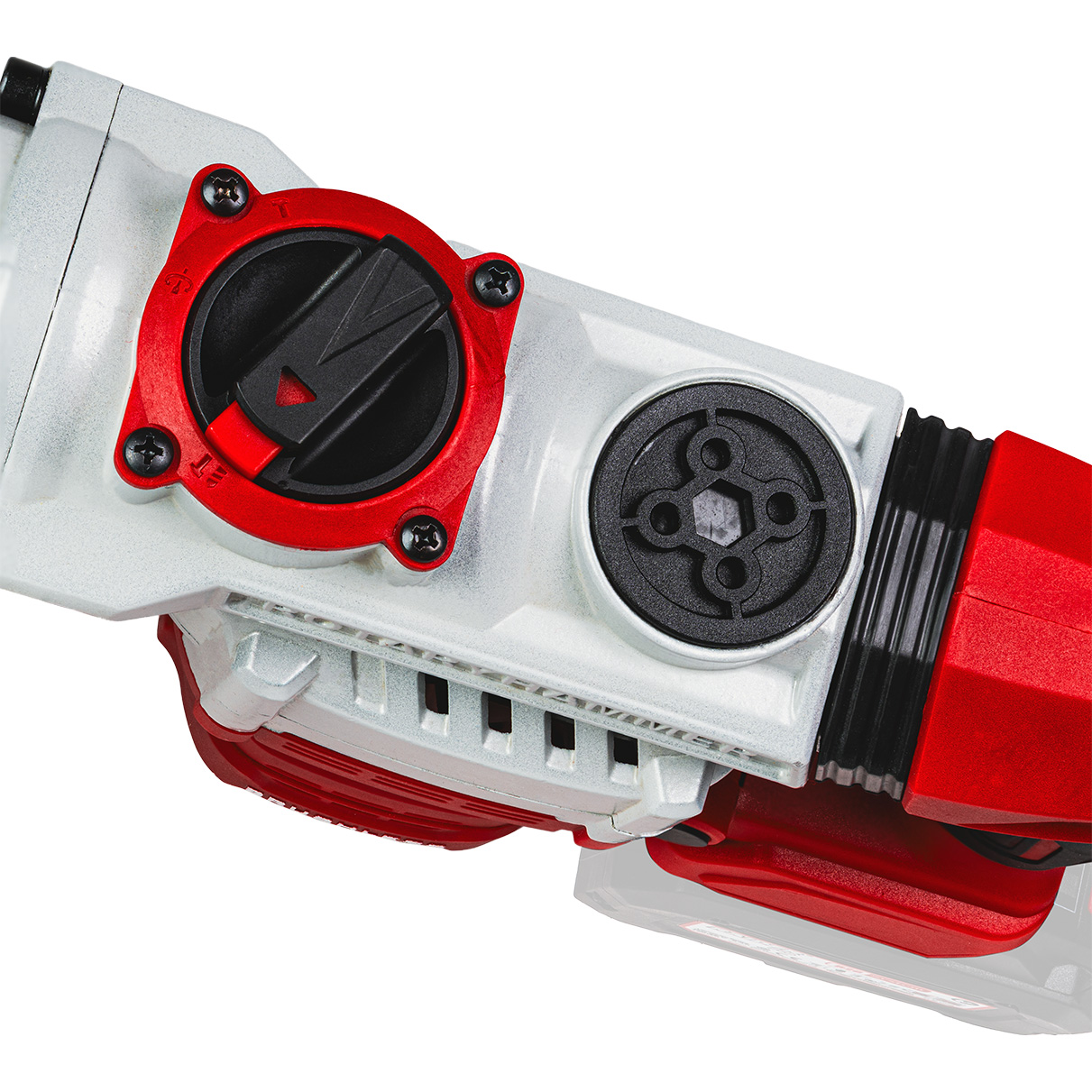

  • Adjustable chisel position

  • No-load speed: 0–500 RPM

  • Impact rate: up to 2700 BPM


  • Design & Comfort:

  • Ergonomic design with anti-vibration handle for more comfortable work and reduced strain on the hands

  • Mechanical safety clutch to protect the user and the tool in case of drill bit jamming


  • Applications:

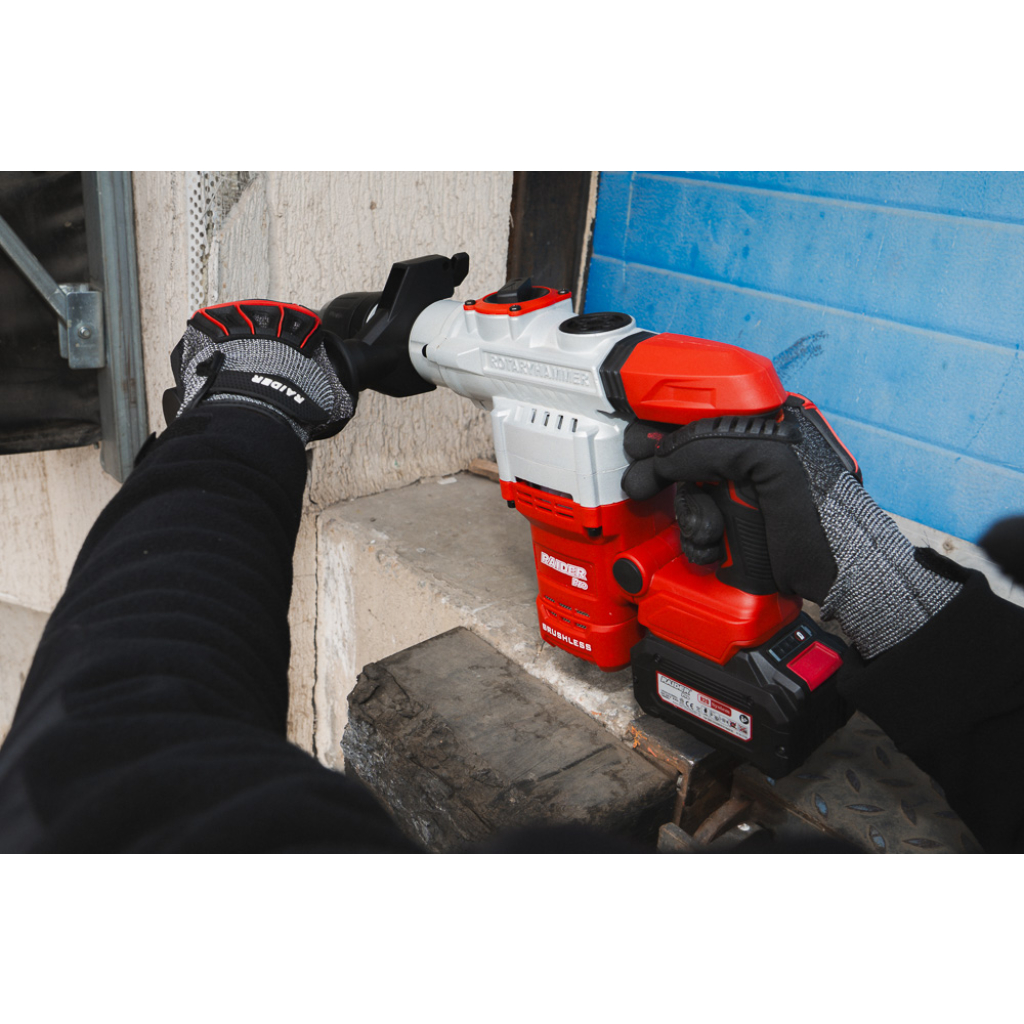

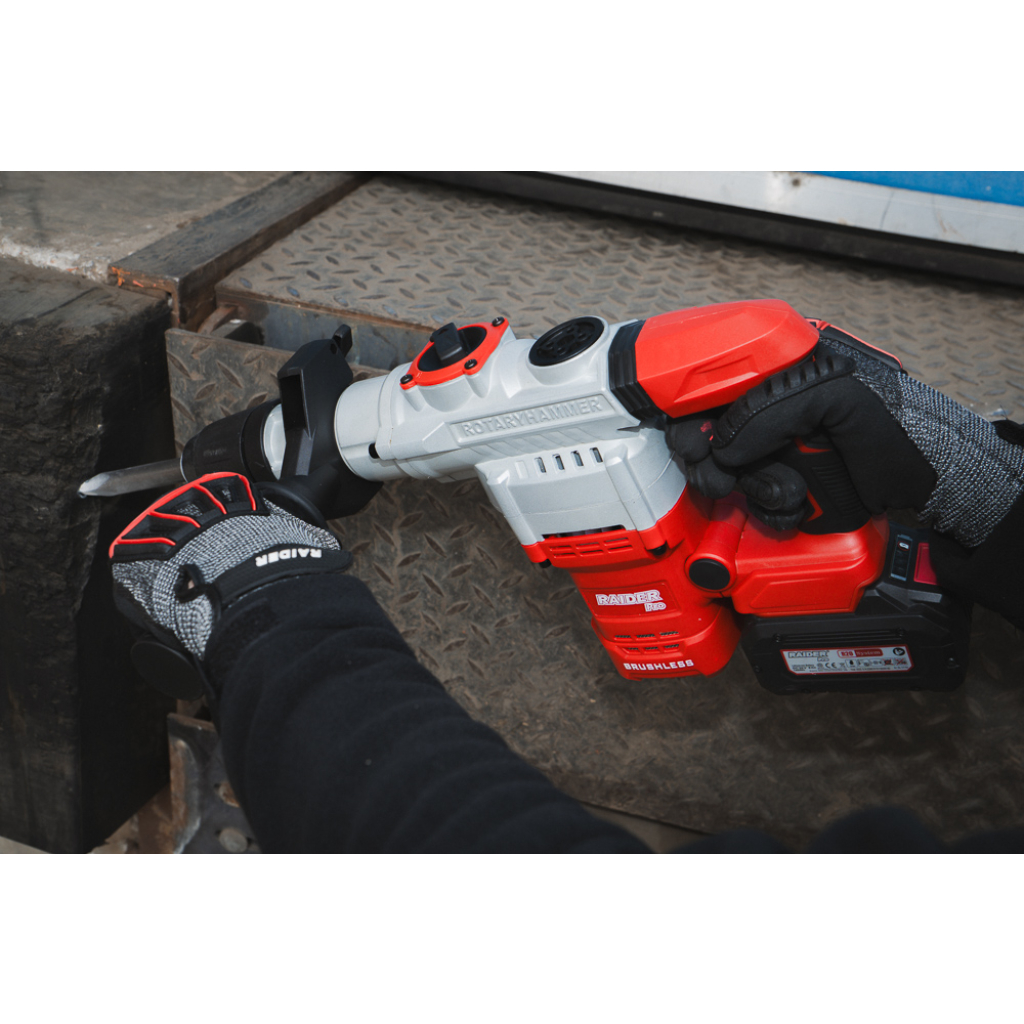

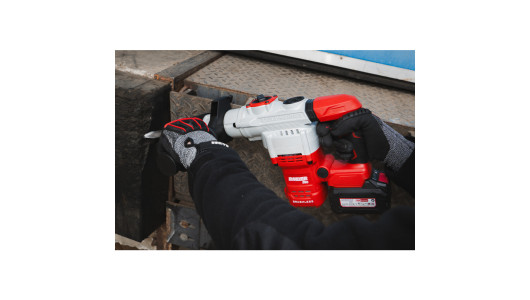

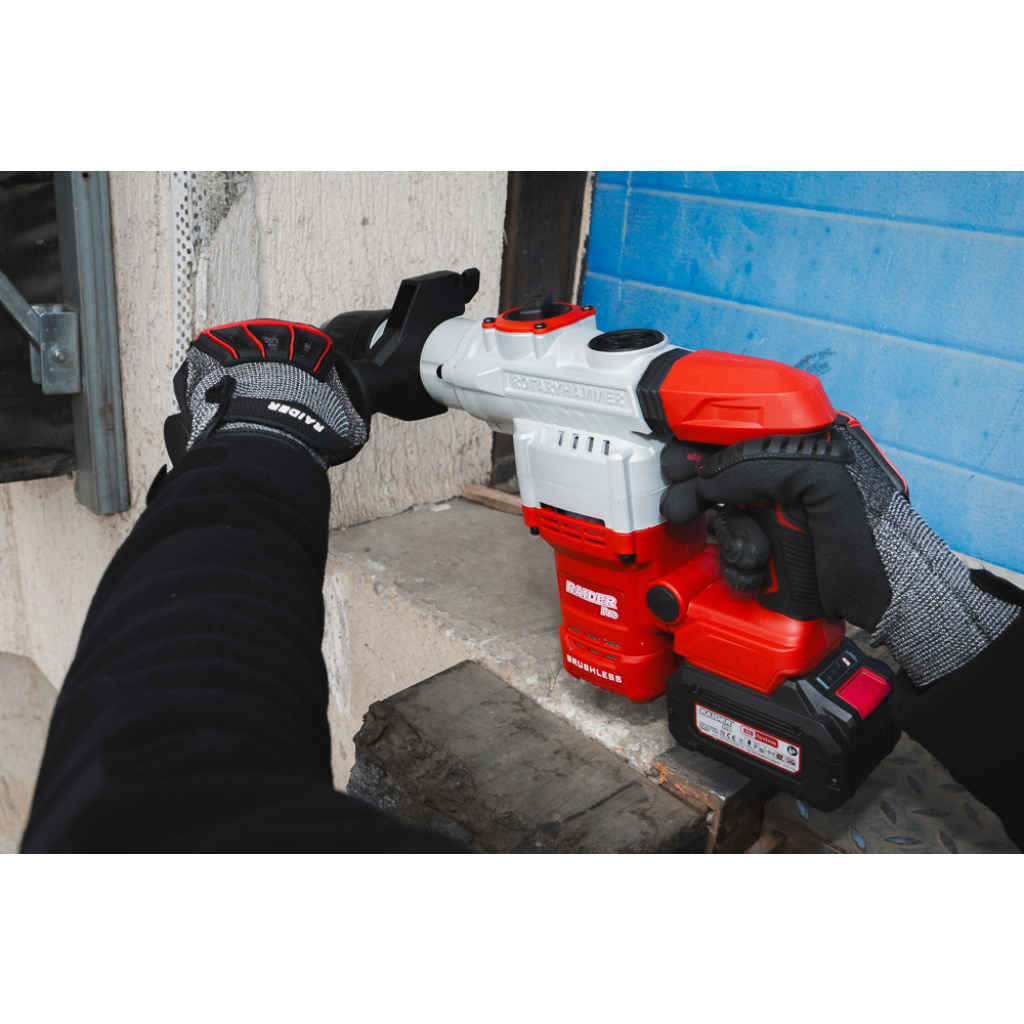

  • Drilling large-diameter holes in concrete, masonry, and stone

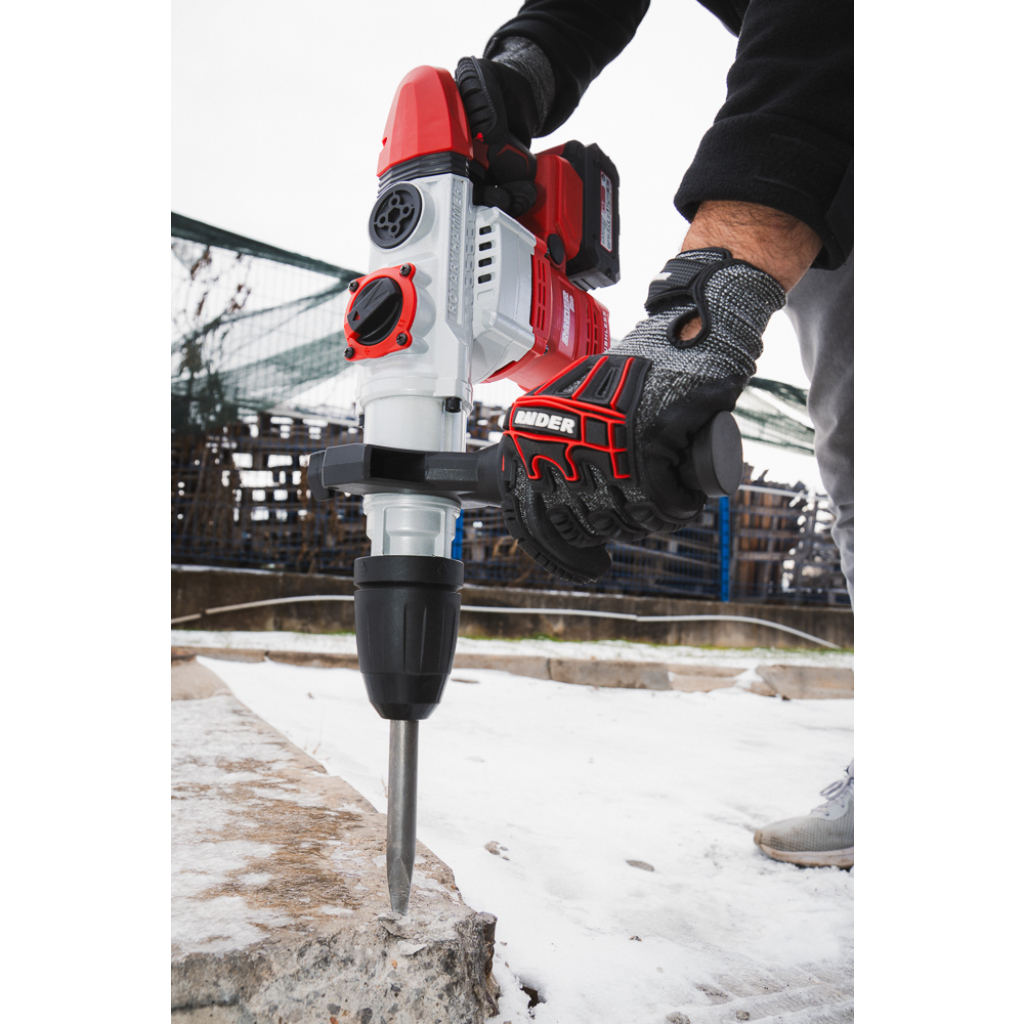

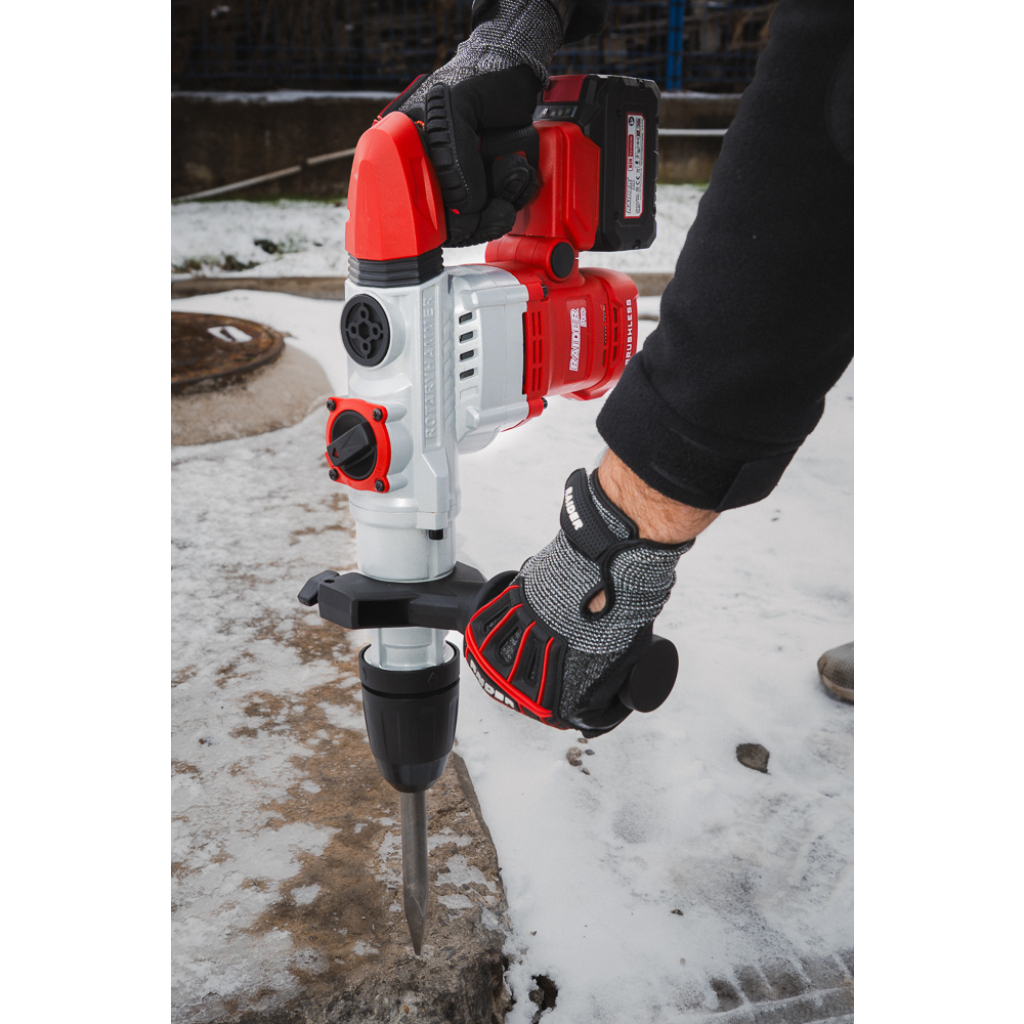

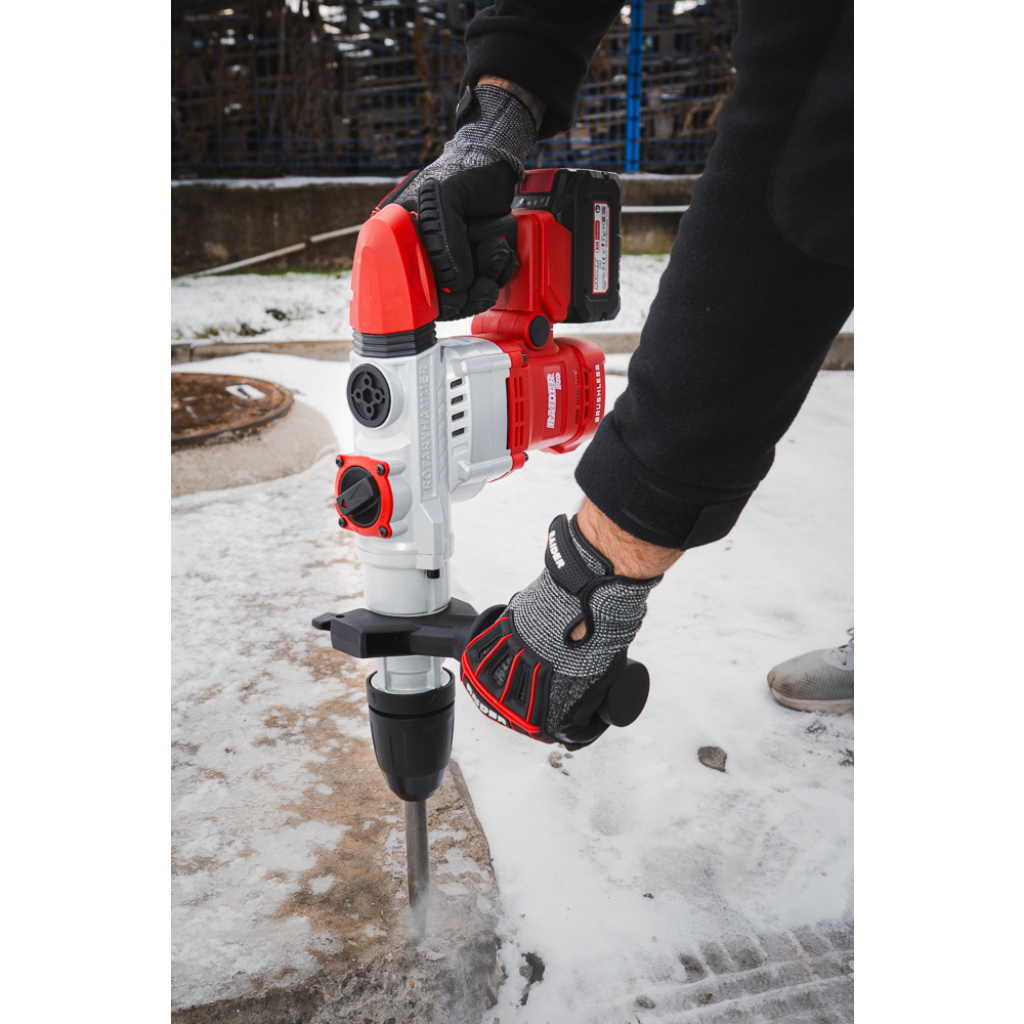

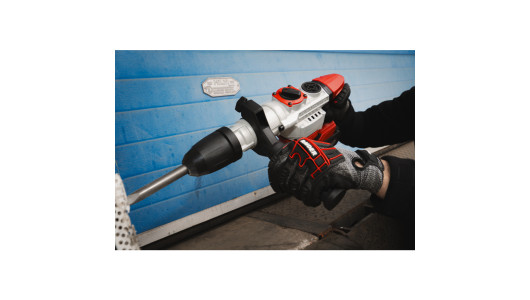

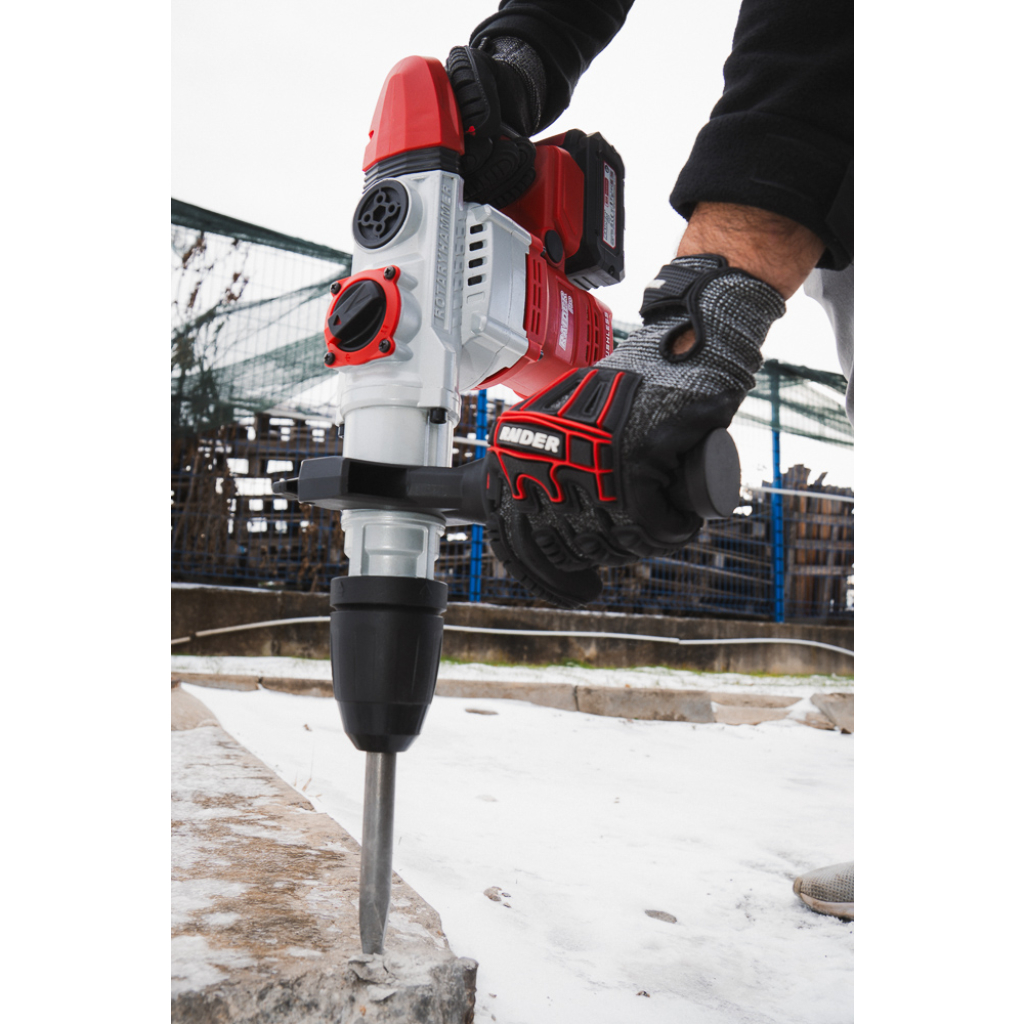

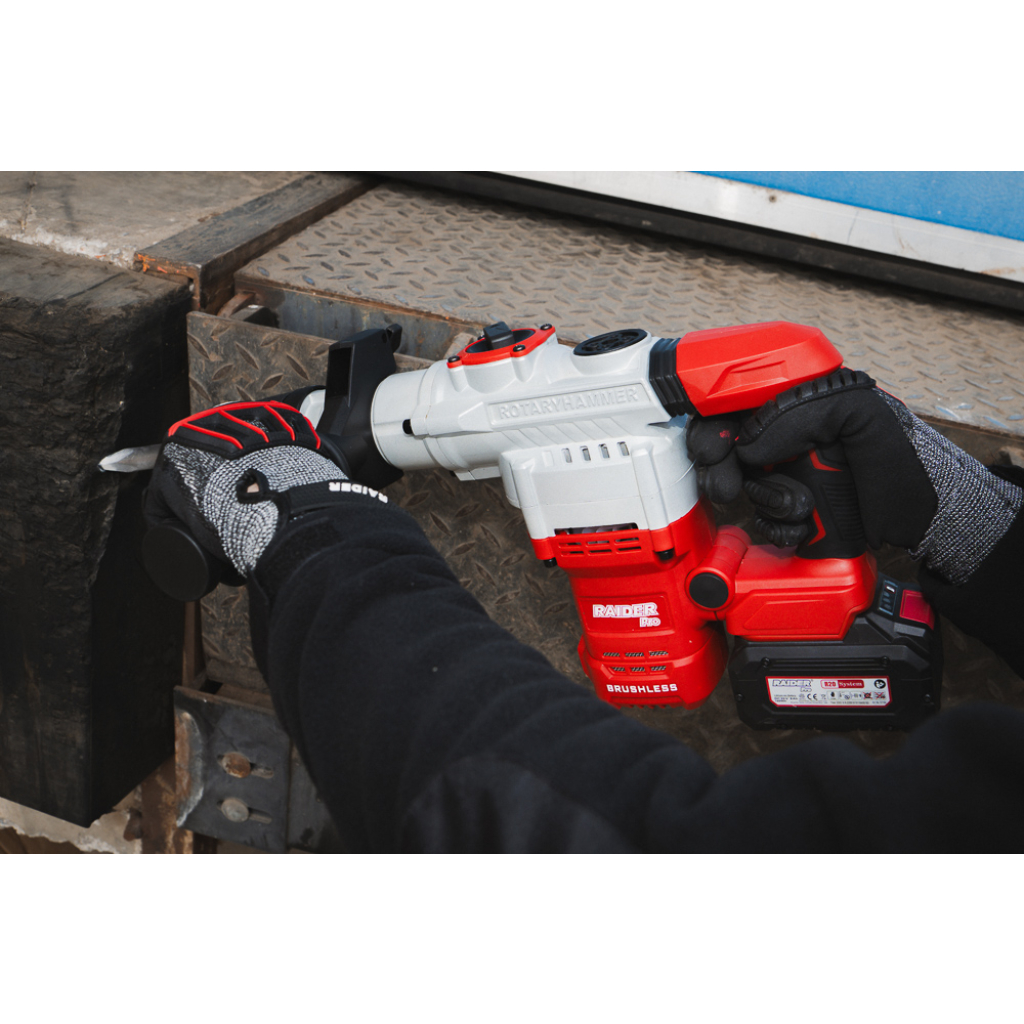

  • Chiseling tasks – removing tiles, concrete coatings, plaster, etc.

  • Suitable for installing heavy-duty structures, electrical installations, pipelines, and more

  • Features
    Main characteristics
    Макс. енергия на удара (EPTA) (J) 7 J
    Maximum single blow energy (epta) (J) 7 J
    Макс. обороти без натоварване диапазон (min-1) 0 min-1 - 500 min-1
    Maximum no- load speed (min-1) 0 min-1 - 500 min-1
    Макс. отвор при пробиване в бетон (mm) 26 mm
    Maximum drilling ø in concrete (mm) 26 mm
    Макс. честота на ударите диапазон (min-1) 2700 min-1
    Maximum impact frequency (min-1) 2700 min-1
    Напрежение на акумулатора (V) 20 V
    Rated voltage (V) 20 V - 20 V
    Номинално захранващо напрежение (V) 20 V
    Тип захранване Акумулаторно
    Rated voltage type Battery
    Функции Къртене - Пробиване с удар - Фиксиране
    Functions Chiseling - Hammer Drilling - Rotation
    Захват на инструмента SDS-Max
    Tool grip SDS-Max
    Additional characteristics
    Вид на акумулаторната батерия Li-Ion
    Accumulator type Li-Ion
    Макс. отвор при пробиване в дърво (mm) 30 mm
    Maximum drilling ø in wood (mm) 30 mm
    Макс. отвор при пробиване в стомана (mm) 13 mm
    Maximum drilling ø in steel (mm) 13 mm
    Equipment

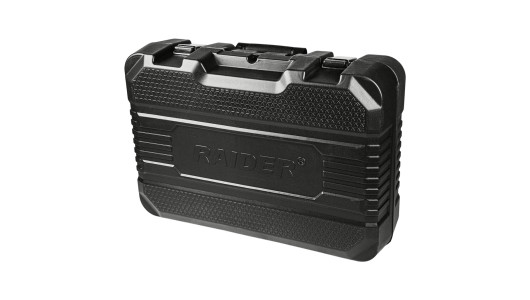

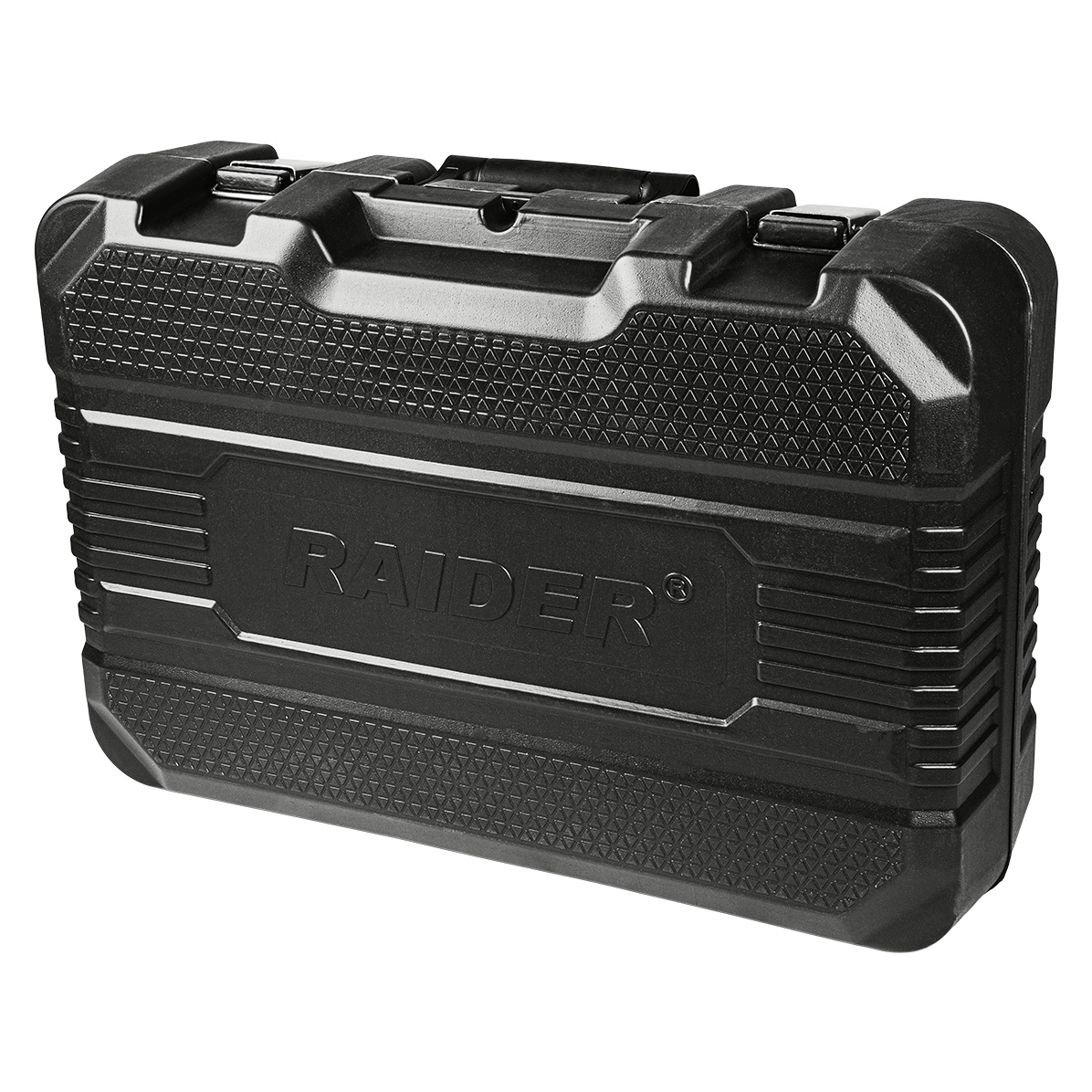

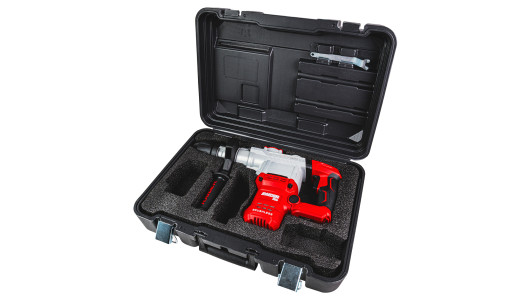

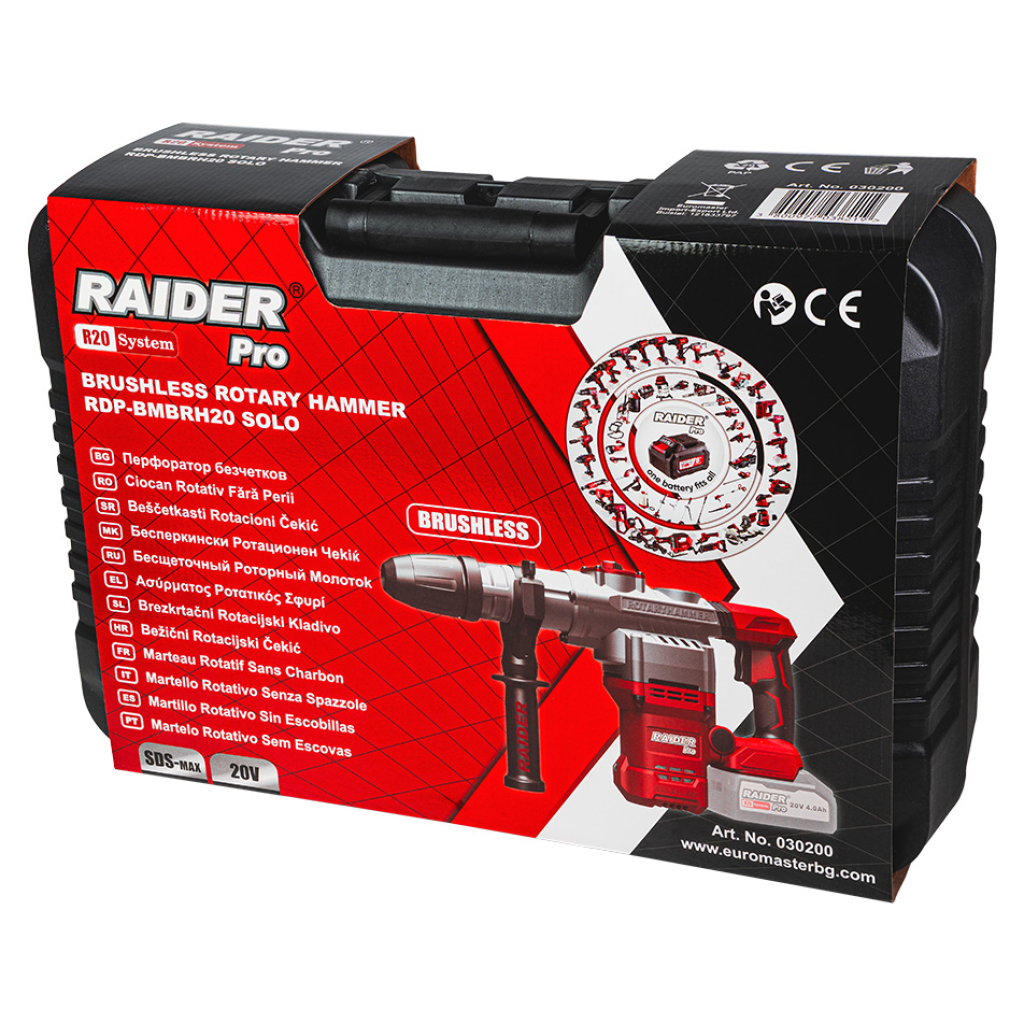

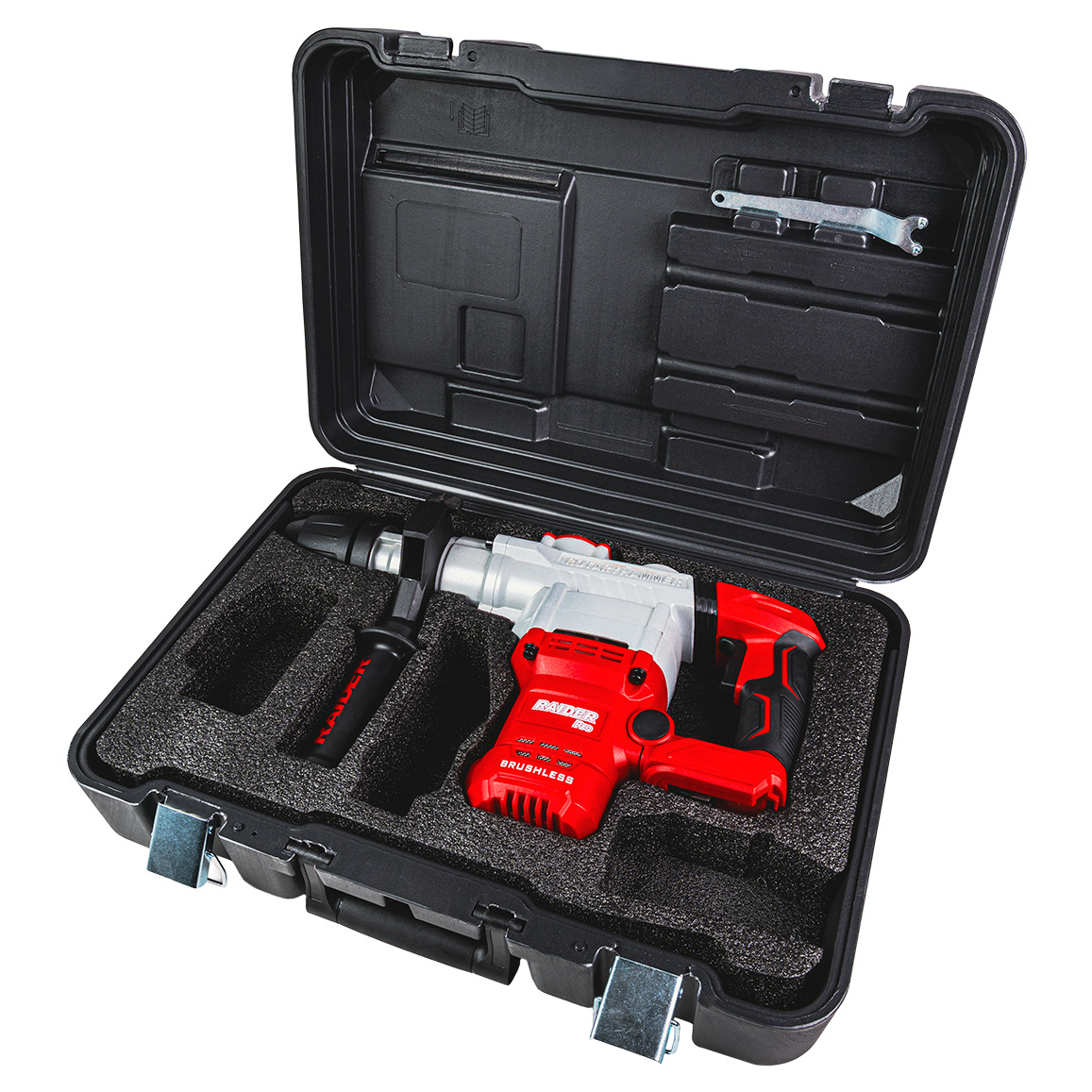

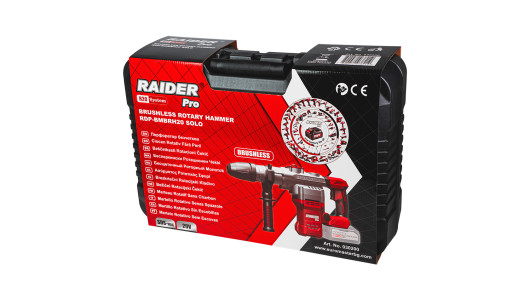

    Tool case 1 pc.
    Extra handle 1 pc.
