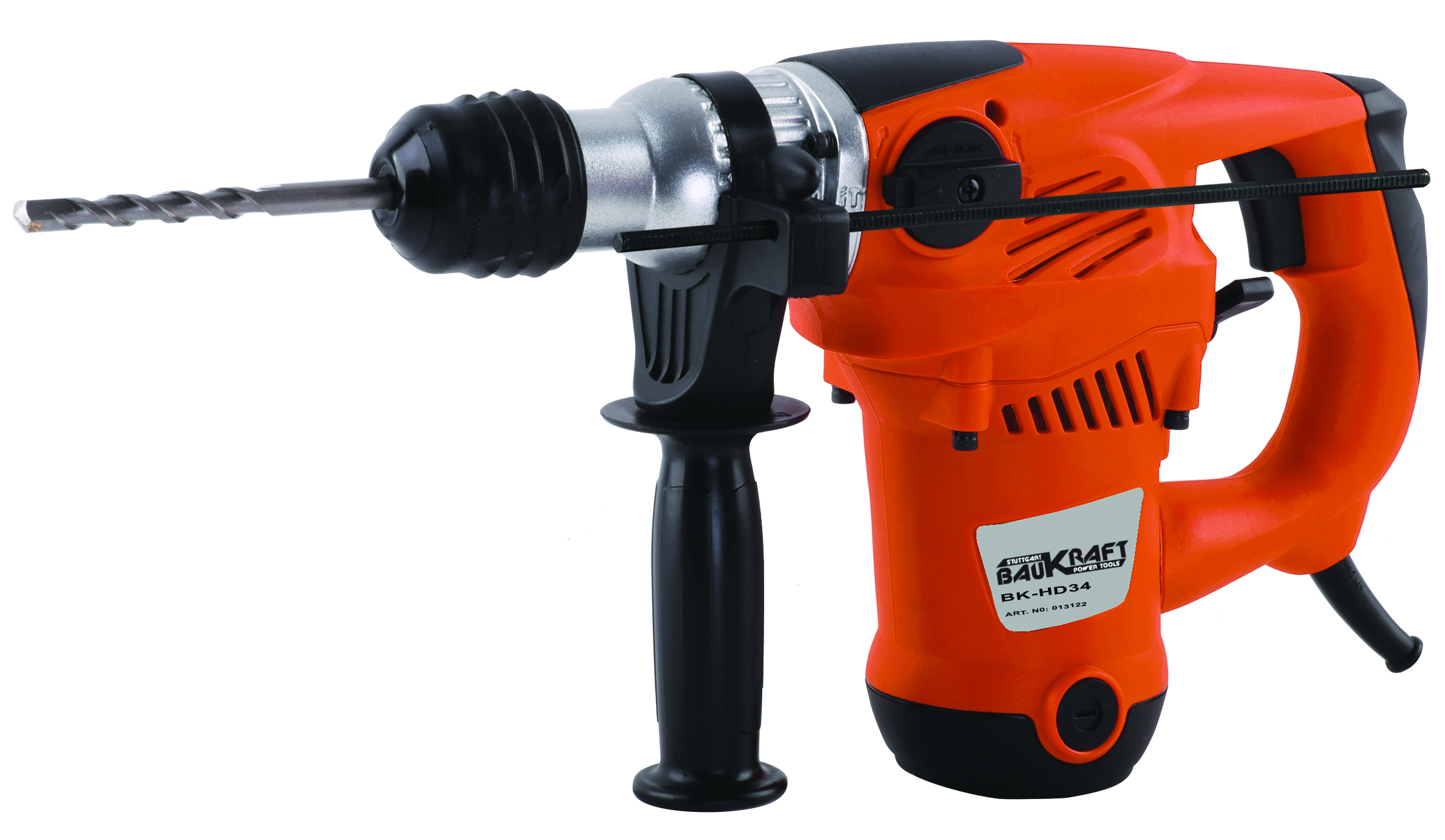

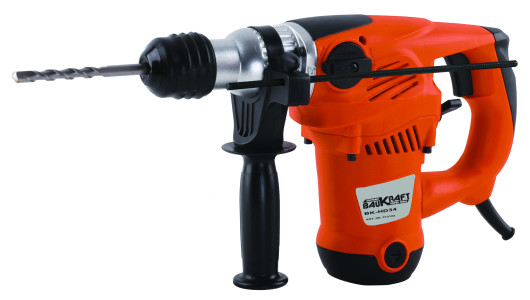

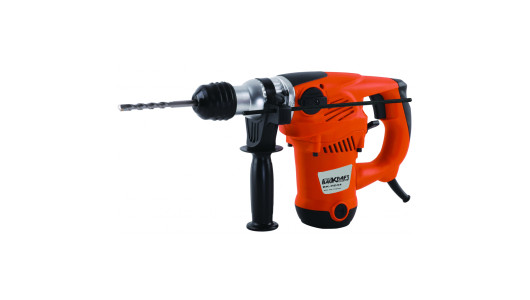

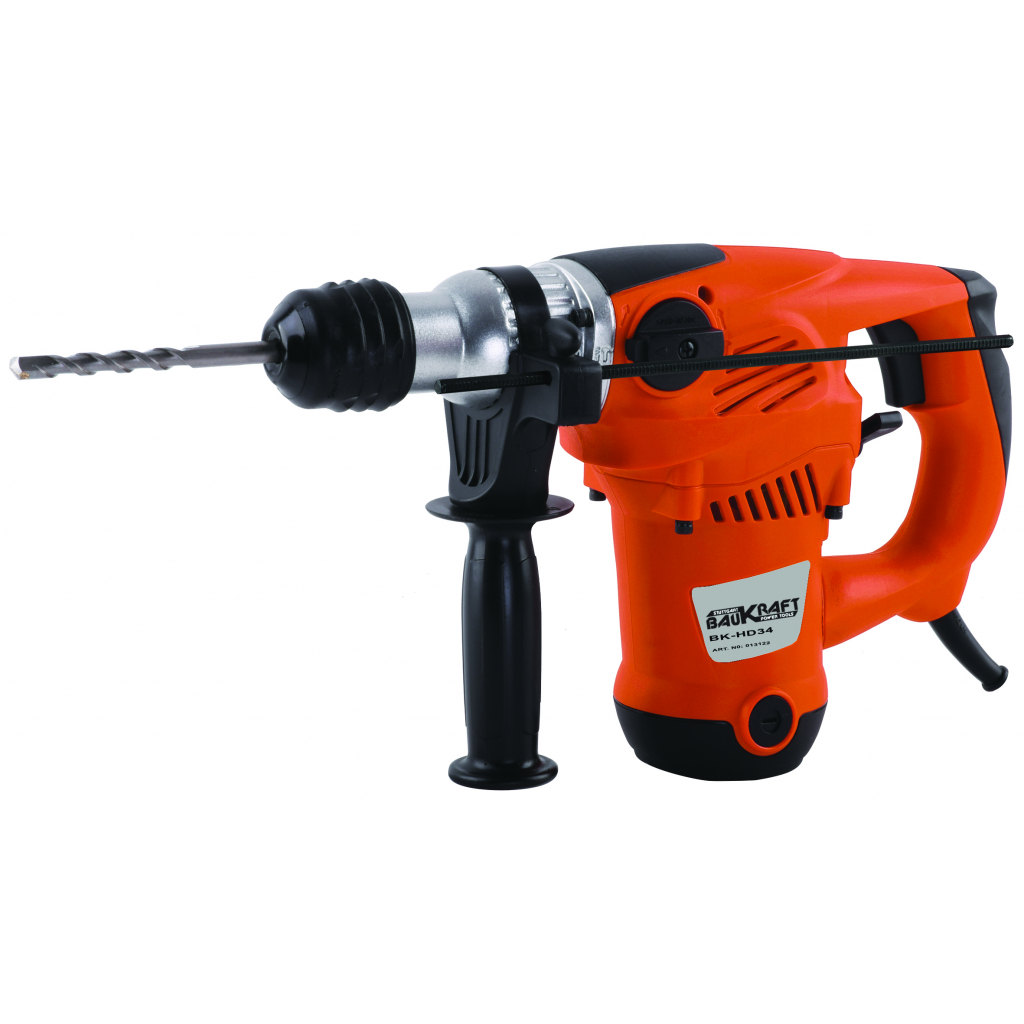

Rotary hammer 1500W 32mm SDS-plus BK-HD34
Rotary hammer 1500W 32mm SDS-plus BK-HD34
- Operating mode switch
- SDS+ chuck
- Auxiliary handle
- Depth gauge
Article number: 013122
Barcode: 3800123163463
Brand: Baukraft
Barcode: 3800123163463
Brand: Baukraft
Download:
Description
Thanks to its versatile application, the Baukraft rotary hammers are the preferred choice among home craftsmen.
The BK-HD34 punch combines a powerful motor and a seamless pneumatic mechanism that together provide reliable drilling, hammer drilling, chiselling in concrete up to ø24 mm. The model is also equipped with the SDS-Plus system, which allows for quick replacement of accessories.
The BK-HD34 model has:
Side handle for better control of the tool during operation
Dust protection cap prevents the entry of drilling dust into the tool holder during operation
The tool is driven by single-phase commutator motor
Hammer drill can be used for drilling holes in working mode with hammer, digging channels, or surface processing of materials such as concrete, stone,
brick
The BK-HD34 punch combines a powerful motor and a seamless pneumatic mechanism that together provide reliable drilling, hammer drilling, chiselling in concrete up to ø24 mm. The model is also equipped with the SDS-Plus system, which allows for quick replacement of accessories.
The BK-HD34 model has:
brick
Features
Main characteristics
| Макс. енергия на удара (EPTA) (J) | 4 J |
| Maximum single blow energy (epta) (J) | 4 J |
| Макс. обороти без натоварване диапазон (min-1) | 0 min-1 - 770 min-1 |
| Maximum no- load speed (min-1) | 0 min-1 - 770 min-1 |
| Макс. отвор при пробиване в бетон (mm) | 32 mm |
| Maximum drilling ø in concrete (mm) | 32 mm |
| Макс. честота на ударите диапазон (min-1) | 4000 min-1 |
| Maximum impact frequency (min-1) | 4000 min-1 |
| Номинална мощност (W) | 1500 W |
| Rated input power (W) | 1500 W |
| Номинално захранващо напрежение (V) | 230 V |
| Rated voltage (V) | 230 V |
| Тип захранване | Мрежово |
| Rated voltage type | Corded - Electrical Grid |
| Функции | Пробиване с удар - Къртене |
| Functions | Hammer Drilling - Chiseling |
| Захват на инструмента | SDS+ |
| Tool grip | SDS+ |
Additional characteristics
| Макс. отвор при пробиване в дърво (mm) | 40 mm |
| Maximum drilling ø in wood (mm) | 40 mm |
| Макс. отвор при пробиване в стомана (mm) | 13 mm |
| Maximum drilling ø in steel (mm) | 13 mm |
Equipment
| Extra handle | 1 pc. |
| Depth limiter | 1 pc. |
| Anti-dust cap | 1 pc. |
| Pointed chisel | 1 pc. |
| Flat chisel | 1 pc. |
| Drill bit | 3pc. |
| Tool case | 1 pc. |
Files
| User manual | Download |
