  • Cutting at horizontal and vertical angles
  • Dust extraction hole
  • Parallel guide
  • Asynchronous electric motor
Article number: 059401
Barcode: 3800123158988
Brand: Raider Pro

pictogram
pictogram
pictogram
pictogram
pictogram
pictogram
pictogram
pictogram
Description
Machines in the Raider Pro series have high performance, improved functionality and a three-year warranty.

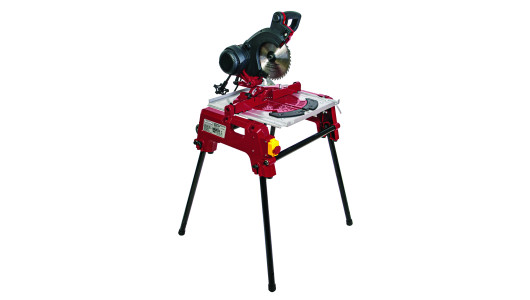

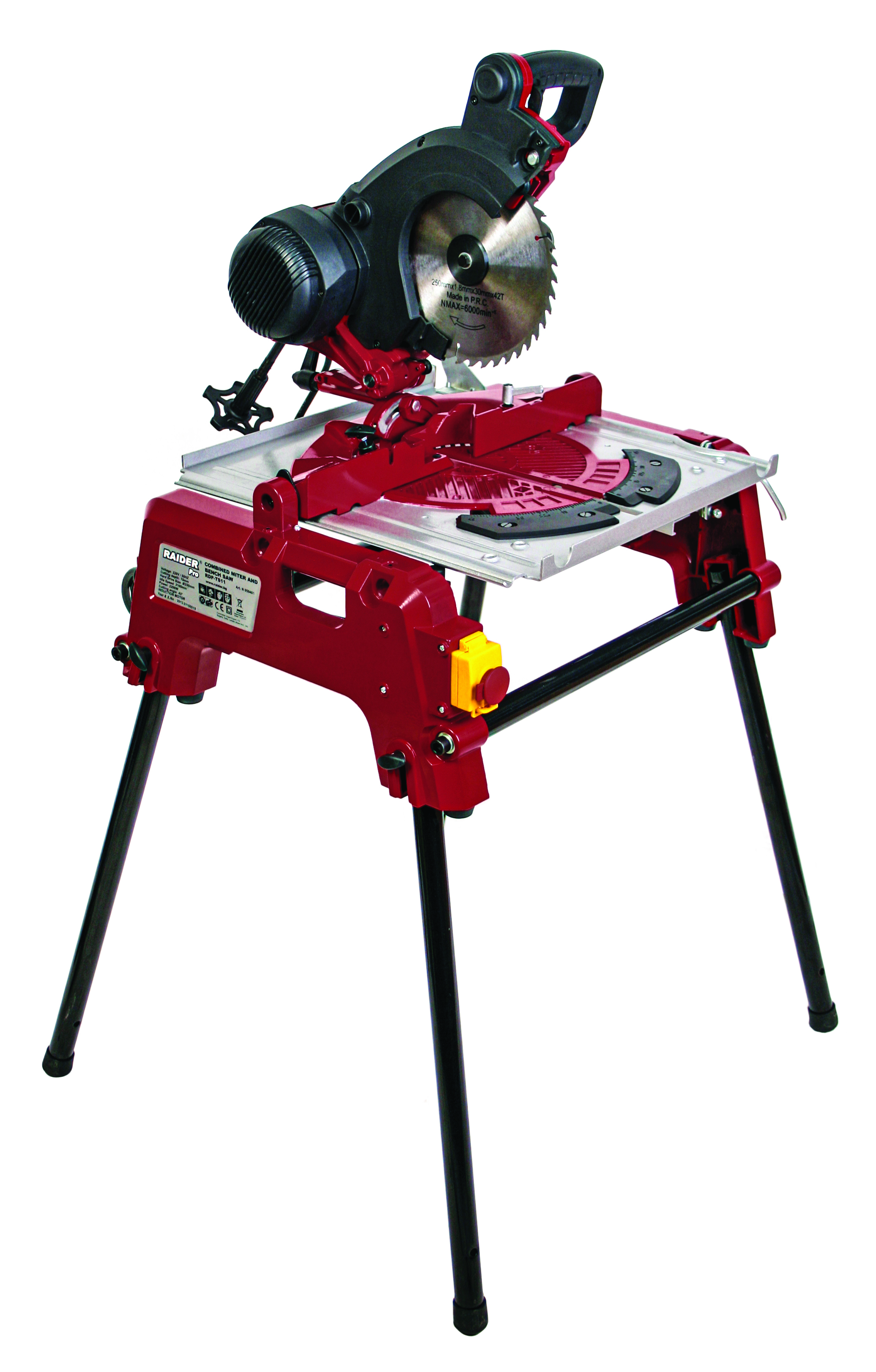

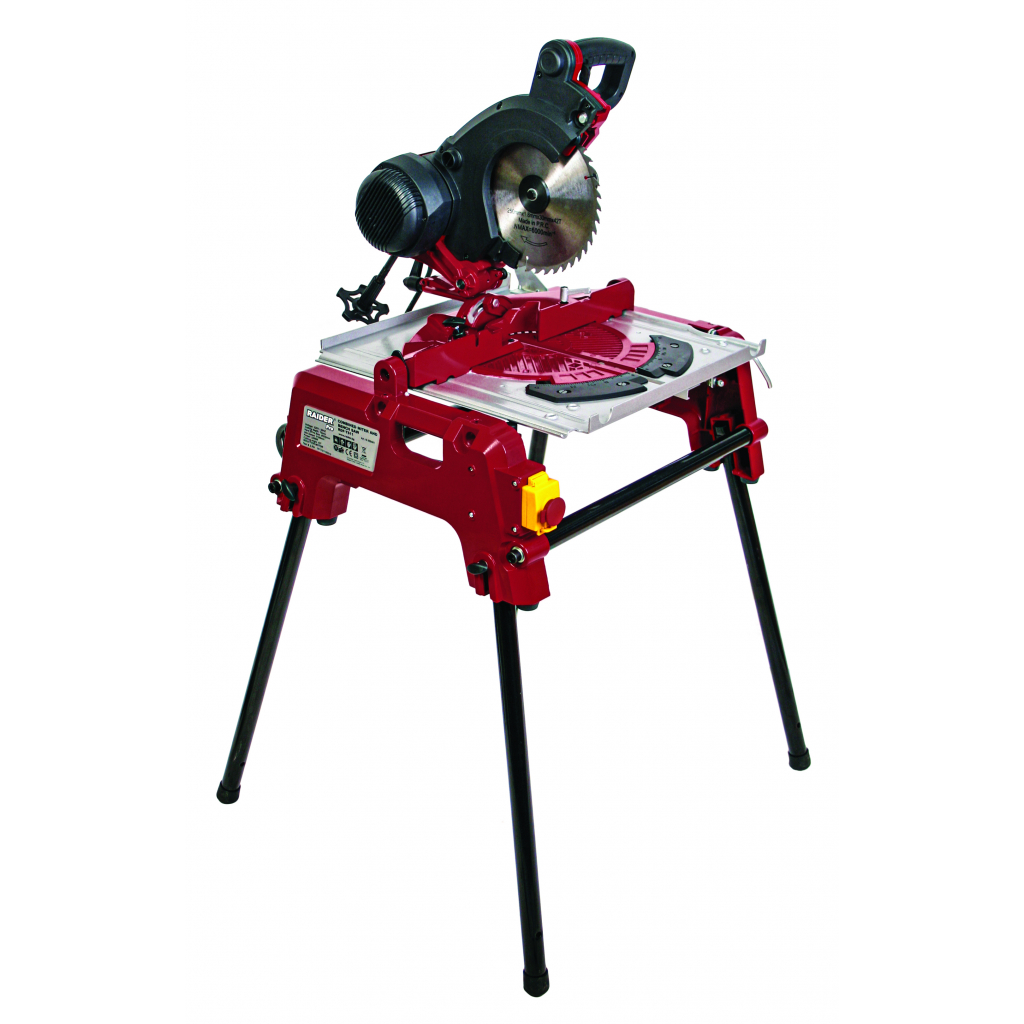

The RDP-TS11 model can be easily transformed from a gerung circular saw to a table circular saw. Its main advantages are:

  • Reliable construction to meet the highest requirements

  • Quick and precise adjustment of cutting angles

  • Asynchronous electric motor

  • Overload protection

  • Parallel Guide

  • Easy and fast disk replacement

  • Metal protective housing

  • Dust capture

  • Features
    Main characteristics
    Външен диаметър на диска (mm) 250 mm
    Outer disc diameter (mm) 250 mm
    Вътрешен диаметър на диска (mm) 30 mm
    Inner disc diameter (mm) 30 mm
    Дължина на кабела (m) 2 m
    Cable length (m) 2 m
    Макс. обороти без натоварване (min-1) 3100 min-1
    Maximum no- load speed (min-1) 3100 min-1
    Номинална мощност (W) 2200 W
    Rated input power (W) 2200 W
    Номинално захранващо напрежение (V) 230 V
    Rated voltage (V) 230 V
    Размер (mm) 330x670x700 mm
    Size (mm) 330x670x700 mm
    Тип захранване Мрежово
    Rated voltage type Corded - Electrical Grid
    Макс. дълбочина на рязане 90°/45° (mm) 85/50 mm
    Maximum cutting depth @ 90° / 45° (mm) 85/50 mm
    Размери на плота (mm) 530x515 mm
    Support surface dimensions (mm) 530x515 mm
    Additional characteristics
    Зъби на диска 42 бр.
    Disc teeth (pcs.) 42 pcs
    Макс. дълбочина на рязане 90°/95° (mm) 70 mm
    Maximum cutting depth -90° / 90° (mm) 70 mm
    Материал на масата Алуминий
    Material of the table Aluminum
    Циркулярен диск-накланяне (°) 0-45 °
    Circular saw disc tilt (°) 0-45 °
    Equipment
    Carbid Disc (42 teeth) 1 pc.
    Disc Replacement Tool 1 pc.
    Pushstick 1 pc.
    Video
    Files
    User manual Download
