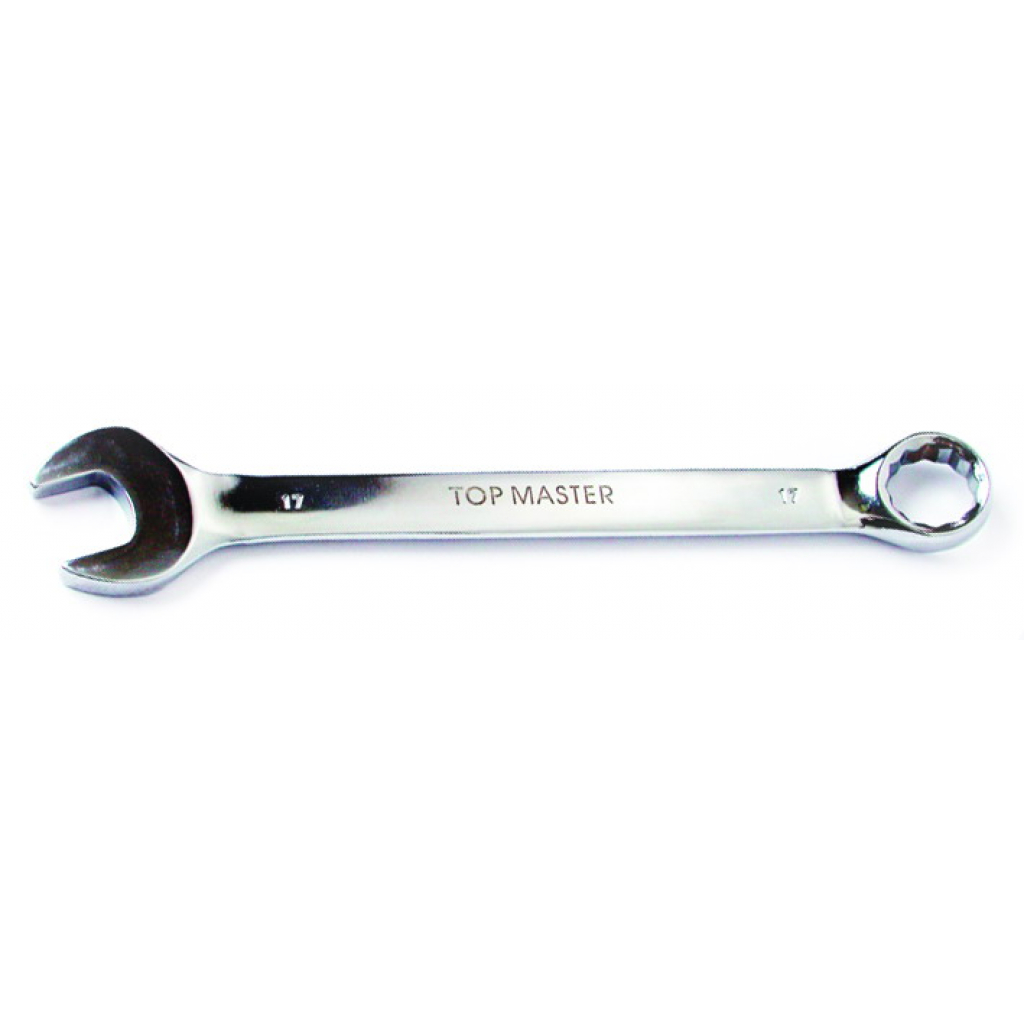

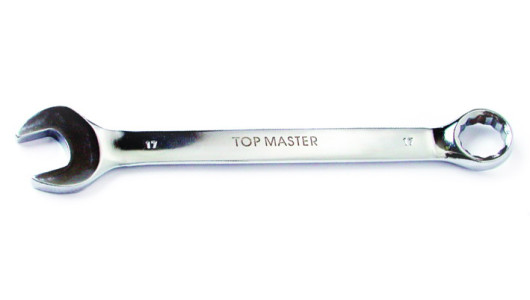

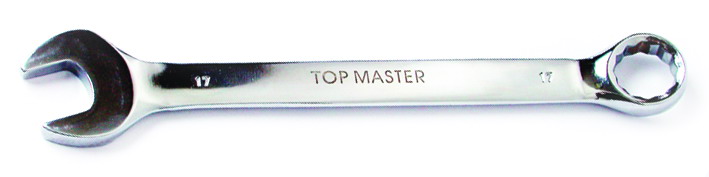

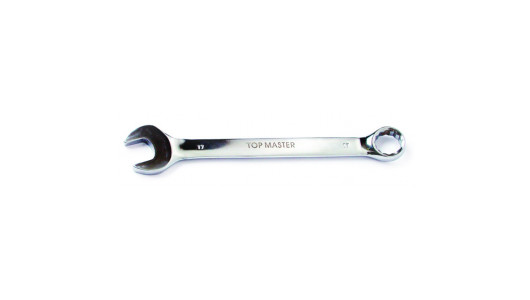

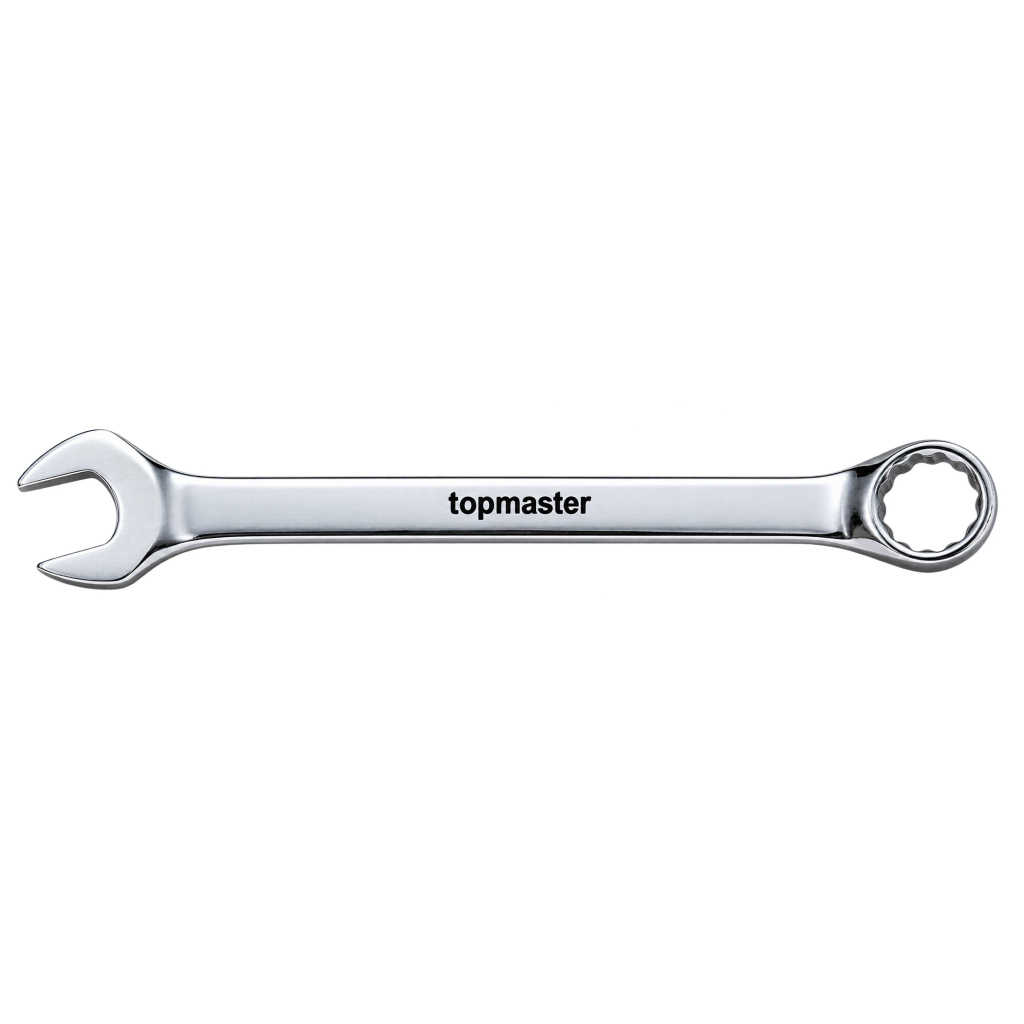

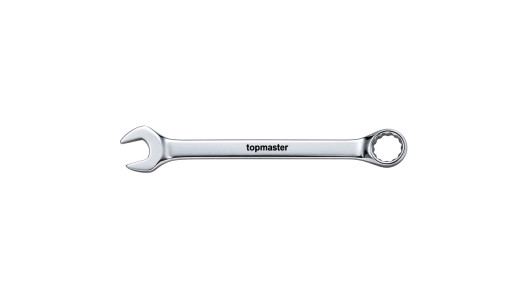

Combination spanners 32mm CR-V TMP
Combination spanners 32mm CR-V TMP
- The head of the key is inclined 15 °, convenient for work in inaccessible places
- Made of high quality chrome vanadium steel
- Fully polished
Article number: 230522
Barcode: 3800123111273
Brand: Top Master Pro
Barcode: 3800123111273
Brand: Top Master Pro
Download:
DIN
3113
Wrench thickness W1 (mm)
10.2 mm
Wrench thickness W2 (mm)
16.8 mm
Length (mm)
360 mm
Material
Cr-V
Offset ring @ (°)
15 °
Generation
1st generation
Size (mm)
32 mm
Reverse
No
Spanner width D1 (mm)
67 mm
Spanner width D2 (mm)
46.7 mm
Coating
Mirror Polish
Series
| Art. Number | Product | Coating | DIN | Generation | Length (mm) | Material | Offset ring @ (°) | Reverse | Size (mm) | Spanner width D1 (mm) | Spanner width D2 (mm) | Wrench thickness W1 (mm) | Wrench thickness W2 (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 230501 |
Top Master Pro
Combination spanners 6mm CR-V TMP |
Mirror Polish | 3113 | 1st generation | 100 mm | Cr-V | 15 ° | No | 6 mm | 14.2 mm | 11 mm | 3.8 mm | 5.5 mm |
| 230502 |
Top Master Pro
Combination spanners 7mm CR-V TMP |
Mirror Polish | 3113 | 1st generation | 110 mm | Cr-V | 15 ° | No | 7 mm | 16 mm | 12.6 mm | 4.6 mm | 5.2 mm |
| 230503 |
Top Master Pro
Combination spanners 8mm CR-V TMP |
Mirror Polish | 3113 | 1st generation | 120 mm | Cr-V | 15 ° | No | 8 mm | 18.2 mm | 12.8 mm | 4.3 mm | 6.5 mm |
| 230504 |
Top Master Pro
Combination spanners 9mm CR-V TMP |
Mirror Polish | 3113 | 1st generation | 130 mm | Cr-V | 15 ° | No | 9 mm | 20.1 mm | 14.9 mm | 5.3 mm | 7.5 mm |
| 230505 |
Top Master Pro
Combination spanners 10mm CR-V TMP |
Mirror Polish | 3113 | 1st generation | 140 mm | Cr-V | 15 ° | No | 10 mm | 20.2 mm | 15.5 mm | 6.6 mm | 8.1 mm |
| 230506 |
Top Master Pro
Combination spanners 11mm CR-V TMP |
Mirror Polish | 3113 | 1st generation | 150 mm | Cr-V | 15 ° | No | 11 mm | 24.3 mm | 17.6 mm | 5.5 mm | 8.3 mm |
| 230507 |
Top Master Pro
Combination spanners 12mm CR-V TMP |
Mirror Polish | 3113 | 1st generation | 160 mm | Cr-V | 15 ° | No | 12 mm | 26 mm | 19.4 mm | 4.9 mm | 7.7 mm |
| 230508 |
Top Master Pro
Combination spanners 13mm CR-V TMP |
Mirror Polish | 3113 | 1st generation | 170 mm | Cr-V | 15 ° | No | 13 mm | 28.8 mm | 20.5 mm | 5.9 mm | 7.85 mm |
| 230509 |
Top Master Pro
Combination spanners 14mm CR-V TMP |
Mirror Polish | 3113 | 1st generation | 180 mm | Cr-V | 15 ° | No | 14 mm | 31 mm | 21.8 mm | 6.3 mm | 9 mm |
| 230510 |
Top Master Pro
Combination spanners 15mm CR-V TMP |
Mirror Polish | 3113 | 1st generation | 190 mm | Cr-V | 15 ° | No | 15 mm | 30.9 mm | 22.7 mm | 5.9 mm | 9.2 mm |
| 230511 |
Top Master Pro
Combination spanners 16mm CR-V TMP |
Mirror Polish | 3113 | 1st generation | 200 mm | Cr-V | 15 ° | No | 16 mm | 34.9 mm | 24 mm | 6.2 mm | 9.3 mm |
| 230512 |
Top Master Pro
Combination spanners 17mm CR-V TMP |
Mirror Polish | 3113 | 1st generation | 210 mm | Cr-V | 15 ° | No | 17 mm | 35.1 mm | 25.6 mm | 6.2 mm | 9.3 mm |
| 230513 |
Top Master Pro
Combination spanners 18mm CR-V TMP |
Mirror Polish | 3113 | 1st generation | 220 mm | Cr-V | 15 ° | No | 18 mm | 37.7 mm | 27.2 mm | 6.6 mm | 9.7 mm |
| 230514 |
Top Master Pro
Combination spanners 19mm CR-V TMP |
Mirror Polish | 3113 | 1st generation | 230 mm | Cr-V | 15 ° | No | 19 mm | 38.2 mm | 27.6 mm | 7 mm | 10.8 mm |
| 230515 |
Top Master Pro
Combination spanners 20mm CR-V TMP |
Mirror Polish | 3113 | 1st generation | 240 mm | Cr-V | 15 ° | No | 20 mm | 42.5 mm | 30 mm | 7.1 mm | 11.4 mm |
| 230516 |
Top Master Pro
Combination spanners 21mm CR-V TMP |
Mirror Polish | 3113 | 1st generation | 250 mm | Cr-V | 15 ° | No | 21 mm | 43.2 mm | 31.5 mm | 7.2 mm | 11.9 mm |
| 230517 |
Top Master Pro
Combination spanners 22mm CR-V TMP |
Mirror Polish | 3113 | 1st generation | 260 mm | Cr-V | 15 ° | No | 22 mm | 45.1 mm | 33.8 mm | 7.8 mm | 11.8 mm |
| 230518 |
Top Master Pro
Combination spanners 23mm CR-V TMP |
Mirror Polish | 3113 | 1st generation | 265 mm | Cr-V | 15 ° | No | 23 mm | 47.1 mm | 33 mm | 6.8 mm | 11.8 mm |
| 230519 |
Top Master Pro
Combination spanners 24mm CR-V TMP |
Mirror Polish | 3113 | 1st generation | 280 mm | Cr-V | 15 ° | No | 24 mm | 51.7 mm | 35.1 mm | 7.5 mm | 12.2 mm |
| 230520 |
Top Master Pro
Combination spanners 27mm CR-V TMP |
Mirror Polish | 3113 | 1st generation | 310 mm | Cr-V | 15 ° | No | 27 mm | 57.5 mm | 39.3 mm | 8.3 mm | 13.5 mm |
| 230521 |
Top Master Pro
Combination spanners 30mm CR-V TMP |
Mirror Polish | 3113 | 1st generation | 340 mm | Cr-V | 15 ° | No | 30 mm | 61.8 mm | 43.5 mm | 9.3 mm | 14.8 mm |
| 230522 |
Top Master Pro
Combination spanners 32mm CR-V TMP |
Mirror Polish | 3113 | 1st generation | 360 mm | Cr-V | 15 ° | No | 32 mm | 67 mm | 46.7 mm | 10.2 mm | 16.8 mm |
| 230527 |
Top Master Pro
Combination spanners 36mm CR-V TMP |
Mirror Polish | 3113 | 1st generation | 383 mm | Cr-V | 15 ° | No | 36 mm | 73 mm | 54 mm | 12 mm | 20 mm |
| 230528 |
Top Master Pro
Combination spanners 41mm CR-V TMP |
Mirror Polish | 3113 | 1st generation | 435 mm | Cr-V | 15 ° | No | 41 mm | 82 mm | 60 mm | 14 mm | 21 mm |
| 230529 |
Top Master Pro
Combination spanners 46mm CR-V TMP |
Mirror Polish | 3113 | 1st generation | 538 mm | Cr-V | 15 ° | No | 46 mm | 97 mm | 73 mm | 16 mm | 24 mm |
Description
The professional hand tools of Topmaster combine exceptional design, quality & long service life.
Topmaster 32mm Combination spanner features:
High quality chrome-vanadium (CR-V) steel, great strength
Chrome-nickel anti-corrosion coating >
The spanner head has an inclination of 15 ° - convenient for work in hard-to-reach places
Fully polished finish
Standardization: DIN 3113
Topmaster 32mm Combination spanner features:
Features
Main characteristics
| DIN | 3113 |
| Wrench thickness W1 (mm) | 10.2 mm |
| Wrench thickness W2 (mm) | 16.8 mm |
| Length (mm) | 360 mm |
| Material | Cr-V |
| Offset ring @ (°) | 15 ° |
| Generation | 1st generation |
| Size (mm) | 32 mm |
| Reverse | No |
| Spanner width D1 (mm) | 67 mm |
| Spanner width D2 (mm) | 46.7 mm |
| Coating | Mirror Polish |
